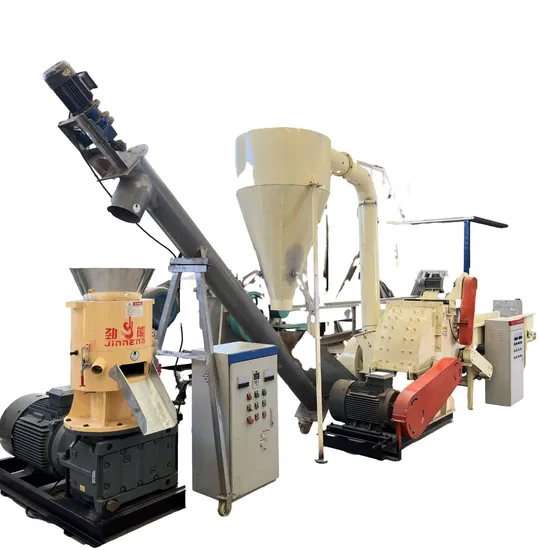

200-500kg/H Wood Pellet Machine Straw Sawdust Branch Pellet Machine Biomass Fuel Pellet Machine

Product Description

Flat die wood pellet machine is the use of crops corn stalk, straw, straw, peanut shell, corn cob, cotton stalk, soybean stalk,rice husk, weeds, branches, leaves, sawdust, bark and other solid wasteas raw materials, after crushing, pressure, densification,molding, become a small stick solid rest pellet fuel. Pellet fuel is made of wood chips and straw scales by pressing roller and ring die at room temperaturc. The density of raw materials is generally about 110-130kg/m3, and the particle density after molding is greater than 1100kg/m3. It is very convenient for transportation and storage, and its combustion performance is greatly improved.
1.This equipment is good at pressing low-viscosity and hard molding materials.
2.Such as pressing rice husks, hardwood sawdust, sunflower seed shells, peanut shells, wood veneers and other wood wastes, and various straws and agricultural wastes can also be pressed.
3.The pellet machine is widely used in the biomass pellet manufacturing industry and other pellet molding industries. With an automatic lubrication system, the large shaft is injected every 15 minutes.

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
JN-300	22	200	800	1230×630×1030
JN-350	30	300	900	1380×630×1280
JN-400	37	400	1200	1380×630×1280
JN-450	55	800	1800	1480×730×1380
JN-450	75	1000	2500	2000×1000×1800
JN-550	90	1000	3000	2000×1000×1800
JN-650	110	1200	3200	2000×1000×1800

pure copper motor
The use of pure copper motor to ensure stable output power and prolong service life
oil pump
Equipped with lubricating circulation oil pump, it can provide lubrication assistance when the machine is running, so that the machine can run for a long time

Press wheel mill
Increase the coarse press wheel, the mill adopts the design of excellent chromium-manganese press shaft and the mill, so that the material is stirred evenly
Long service time
Excellent material, stable structure, suitable for long-term operation, reduce the failure rate

---
