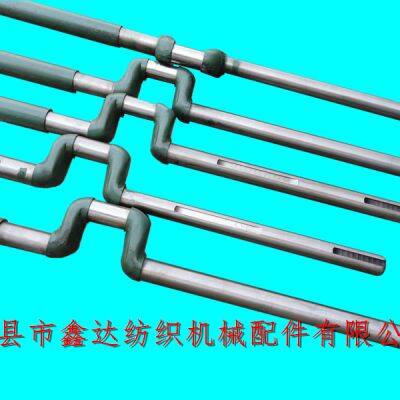

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515-56 loom bending shaft 3209 textile crankshaft accessories all year round. The loom bending shaft, Weaving Machinery Parts Shuttle Loom Bending Shaft 3209 Textile Crankshaft, also known as the crank shaft, is the main transmission component of the loom. The shaft diameter of the 56 inch 3209 crank shaft is 40mm, and the total length is 2.422 meters. The 1515 type is connected with the 4320x4321x4322 wallboard bearing copper sleeve, the GA615 type loom is connected with the 0100-1 copper sleeve, and the textile crankshaft 3209 is divided into left-hand and right-hand cars, The left and right hands are distinguished by the position of the switch handle.
The long shaft head of the bending shaft of the loom is installed with 4118 brake disc, 3210 bending gear, 4100-1 clutch, 4100-2 V-belt pulley (0200-1 for GA615), and the short shaft head is installed with 3411 skew wheel and 3212 handwheel.
Inspection and installation requirements for the bending shaft 3209 of the loom: put the 3209 bending shaft on the V-shaped iron of the straightening table, and check that when the wear out of the Journal (bending crank) exceeds 0.15mm, it is necessary to replace the new crank shaft; When the bending of the crankshaft journal exceeds 0.1mm and the bending of the crank exceeds 0.2mm, it needs to be corrected.
The bending shaft of 3209 loom is forged and processed from 45# steel, and the surface of the shaft body is polished. The 1515 and GA615 56 inch looms are designed with double beams. Due to the wide door width, two support legs 4323x4325 and 4324x4325 are added inside the bending crank. For textile manufacturers, textile mills, cotton textile processing plants and trading companies who need to purchase bending shafts, loom bending shafts, Bending Shaft,Crankshaft,Textile Machine Parts,GA615 crankshafts, textile crankshafts and 1515 loom accessories, please contact Mr. Yang of Xinda Textile machinery accessories company for details!
1515-56 loom bending shaft 3209 textile crankshaft accessories are centered on the left and right (consistent with the spacing between the two sides of the inner edge of the spherical bearing), traverse 0.1-0.4mm (check the narrow gap with a feeler gauge), and are flexible (without V-belt disc and clutch, when the bending shaft is bent at 45 ° before and after the upper center, it is appropriate to fall freely beyond the lower center). Loosening and obvious heating during driving are not allowed.
>>
