Product Details
Product Description
Product Description
Features:

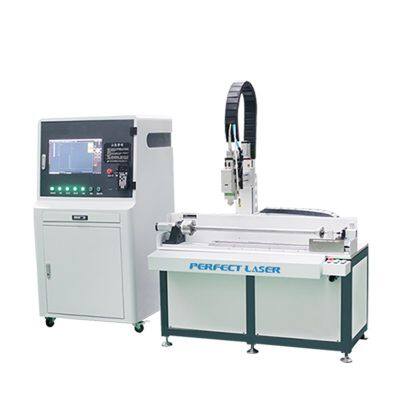

1. The CNC metal laser cutter machine is with beautiful appearance, compact and reasonable structure, and the placement and use are very convenient.
2. The CNC metal laser cutter processing flexibility is good, process any graphics, cut pipe and other profiles, not affected by the shape of the work piece at all.
3. Non-contact cutting, cutting quality is good, the heat affected area is small, completely avoid the material punching shear formed by the collapse of the edge, cutting generally do not need secondary processing or a small amount of grinding processing.
4. Not affected by the hardness of the cut material, can be cut without deformation, smooth cutting section without burr and no damage to the work piece, greatly improve the yield.
5. Hardware pipe CNC metal laser cutter the whole system optical path self-protection function is good, with multi-channel closed-loop protection system and powerful self-diagnosis function, the alarm can prompt quickly.
6. Processing without mold, save mold investment cost and time cost, greatly reduce the process flow and reduce the production cost, improve the speed of new product development and processing efficiency.
7. Independent operating table, good numerical control system, friendly design interface and efficient automatic typesetting function, and can be real-time feedback to the processing state, to ensure the orderly processing, simple and intuitive operation.
8. According to the application scenario, various non-standard models and specific fixture, loading bin and automatic feeding device can be customized to meet your needs.
Technical Parameters:
Product Name
| Hardware Pipe Precision CNC Automatic Fiber Laser Cutting Machine
|
Laser Device
| High performance fiber laser
|
Laser Power
| 1500W
|
Modulation Frequency
| 0～5kHz （adjustable）
|
Optical Quality
| ＜2.0mm*mrad
|
Maximum Cutting Capacity
| Carbon steel 10mm; Stainless steel 6mm;
Aluminum alloy: 5mm
|
Pipe Diameter
| Within 400mm
|
Hole Roundness
| 0-0.1mm
|
Working Voltage
| Three-phase 380v±5%/50Hz
|
X-axis Stroke
| 1000mm (movement of work piece diameter)
|
Y-axis Stroke
| 100mm (work piece length direction movement)
|
Z-axis Stroke
| 150mm
|
Maximum Velocity on the X and Y Axes
| 30 m/min
|
X and Y Axis Positioning Accuracy
| ≤0.03mm/m
|
X and Y Axis Repetition Accuracy
| ≤0.02mm
|
Wall Thickness
| Within 6mm
|
Positional Accuracy
| Within 0.05mm
|
>>
