Product Description

Product Description

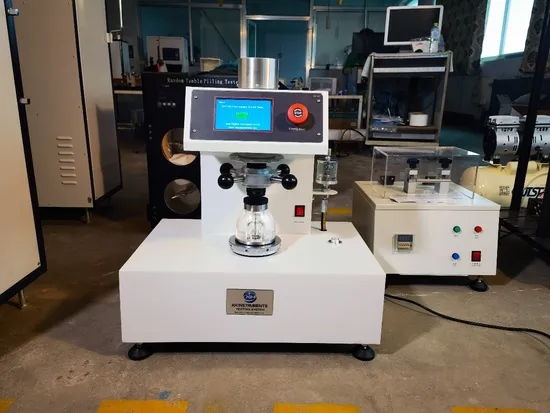

XHF-16 Textile Bursting Strength Tester is Used in a variety of textiles , non- woven fabric , leather and other materials , while force ( flexible diaphragm law ) in latitude and longitude and in all directions , expansion force and dilation of the performance measurement .
Test Standard:
ASTM D3786, ISO 13938.1, BS 3424 (PT. 6), ISO 3033-B, EN 12332-2
Features:
Hydraulic pressure to 6000Kpa
Quick change bells
Diaphragm correction
Automatic flow rate adjustment
Software analysis for full results
Distension measurement up to 70mm
Integrated safety shied
Provided with a touch screen readout of pressure, time of burst, height of burst
Big touch screen operation, also can use PC operation.
High quality and renewable rubber diaphragms, manual griping device, and forward reverse and neutral drive system
Adopt high quality AC servo motor driven
Technical Parameter:

Capacity	0-6MPa (6000Kpa)
Test Speed	Adjustable, 20-800ml/min
Bursting strength accuracy	+/-0.5%FS
Hydraulic fluid	glycerin with concentration 85%
Power supply	Ac220V 50Hz/110V, 60Hz

Recommendend Products

Company Profile

Packaging & Shipping
FAQ
1. How About Machines Calibration?
Answer: All machines is calibrated well in house before it is out of factory, XH Instruments will provide you calibration report, if you need calibration certificate from third party, such as ISO 17025 certificate, we also can provide you with extra charge.
2. What about delivery way and delivery item?
Answer: Courier Express Delivery, Sea Delivery, Air Delivery.
EXW Works, FOB, C&F, CIF, ClP, CPT, FCA, DDU.
3. How can I pay you?
Answer:Bank TT, Western Union, L/C, Paypal.
4. How about you after service?
Answer: XH Instruments will give a feedback within 24 hours.Warranty Period is 12 Months.
For problem caused by product quality within warranty period,XH Instruments will provide product maintenance, technical support, freight out and home as well as spare parts free of charge.
Problem not caused by product quality within warranty period or maintenance beyond warranty period is only charged for replaced parts. However, freight charges home and out are at customer' side (only the replaced part is charged if transportation of instrument is unnecessary).

---
