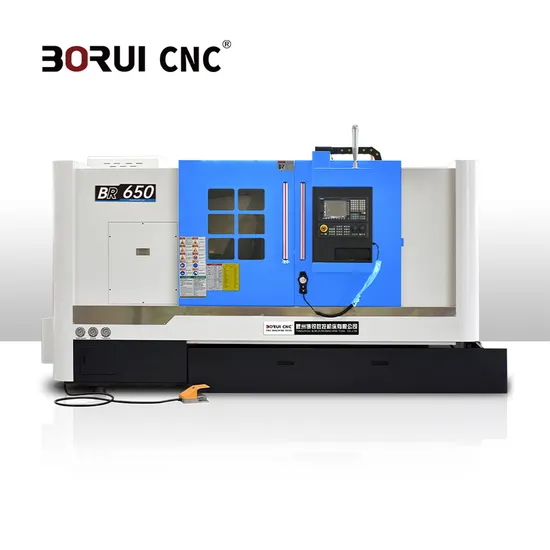

Br-650-1000 Slant Bed CNC Metal Processional CNC Slant Bed Turning Lathe Machine

Product Description

BR-650-1000 Slant Bed Cnc Metal Processional Cnc Slant Bed Turning Lathe Machine
Product Description

Product Parameters
Product main technical Specifications:

Machine Model	Model	BR-650-1000	BR650-1000D	BR650-1000DY
Major parameter	The maximum turning diameter on the bed	Φ650	Φ650	Φ660
	maximum machining diameter	Φ630	Φ550	Φ600
	Maximum machining diameter on the tool holder	Φ400	Φ400	Φ440
	Maximum processing length	1000	1000	1000
	distance between two peaks	1320	1320	1320
	X/Z/Y axis limit travel	350/1120	350/1120	350/1120/100(±50)
	X/Z/Y axis connection mode	Direct	Direct	Direct
Spindle and chuck parameters	Spindle head form	A2-8	A2-8	A2-8
	Optional hydraulic chuck, oil cylinder	Standard 10 inches	Standard 10 inches	Standard 10 inches
	Recommended spindle motor power	11-15KW	11-15KW	11-15KW
	Spindle speed	2600rpm	2600rpm	2600rpm
	Spindle hole diameter	Φ87	Φ87	Φ87
	Bar diameter	Φ72	Φ72	Φ72
Turret	Turret type	Hydraulic/Servo Turret	BMT55 Power Turret	Y axis power turret BMT55
Tailstock	Socket diameter	Φ100	Φ100	Φ100
	Socket travel	120	120	120
	Tailstock maximum stroke	1250	1250	1250
	Tailstock sleeve tapered hole	MT5#	MT5#	MT5#
Shape and weight	Machine size(L * W * H)	3170×1180×1700	3170×1180×1700	3236×1480×1870
	Weight (approx. weight)	5000kg	5000kg	5000kg

Details Display

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

---
