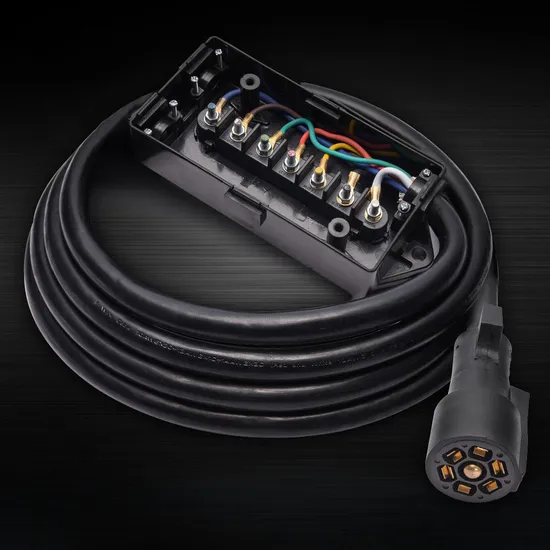

7 Pin Plug RV Boat Trailer Cord Junction Box 8FT Copper Wiring Cable 7 Way Plug Trailer Cord for RV Camper

Product Description

Product Description
Color: Black
Rated Voltage: 12V
Conductor:Copper
Length:4FT 8FT or Customized
Accessories: 4 open grommets
Junction Box Dimensions: 6.5"x3.1"x2.2"
Material: Copper + ABS + PVC + Rubber
Functions for Wiring
Molded Connector Function
White Wire (10AWG) Ground
Red Wire (14AWG) Left Turn and Brake
Brown Wire (14Gauge) Right Turn and Brake
Green Wire (14Gauge) Tail Lights
Blue Wire (12Gauge) Brake Power
Black Wire (10AWG) 12 volt(hot lead)
Yellow Wire (14Gauge) AUX

Tidy Your Wire Harness - 7-way copper blade molded into a heavy duty plug, provides a fast and simplified way for wires connection as well as keeping all your trailer wiring in order

Convenient Trailer Wiring - sturdy junction box with color marked 7-poles that can be easily identified, gives you more convenience for wiring left/right turn light, brake signal lamp, reverse light, tail light, etc
Excellent Construction - adopted flameproof ABS junction box and good conductivity copper with solid cord, stronger and rugged, perfect for RVs, trailers, campers, caravans, food vans and other towed vehicles
Flexible Connection - 8ft long cord with soft and durable PVC housing that offers you plenty of flexibility to wire it from the front to the rear of your car

Best Sealing Performance - 4 open rubber fitted grommets for option based on your wiring needs, making the whole junction box waterproof, dustproof and corrosion resistant.

---
