Aquatic Weed Harvester/ Floating Debris Garbage Cleaning Harvesting Machinery for Lake Water Treatment

Product Description

Agricultural underwater lawn mower aquatic weed harvester floating boat harvester for pond cleaning
1. Introduction

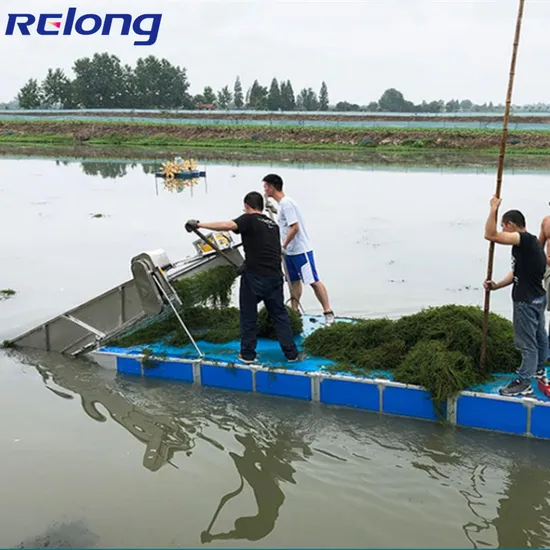

The aquatic weed harvester is a special mower for shrimps and crabs. The use of mechanical automation will cut all the various water plants in the pond about 1 meter below the water surface and salvage them ashore, which is a good way to improve the breeding environment of shrimps and crabs. The whole machine includes a foam hull, a propeller, a scissor part, and a conveying part; the main engine is operated, and the propeller pushes the foam hull forward to cut the grass under the water at one time and salvage it ashore.
2.Features
1Using the strength galvanized three-knife design, the mowing efficiency is higher!
2 The blade is enlarged (height: 1 m, width 1.7 m);
3 It can easily cut underwater water plants, lotus leaves, reeds, water hyacinth, etc.
4The hull is added with color steel plate, which is more durable!
5 The foam in the hull is upgraded to high density, and the foam enters less water!
6The boat is divided into two sections, each section is equipped with a handle for easy transportation!
3.The main function
1. Labor saving: The working efficiency of one machine is equivalent to the working efficiency of 30 people
2. Easy to transfer: under the premise of ensuring the rigidity of the lawnmower, the weight is reduced as much as possible to facilitate the manual lifting of the turning pond
3. Unique design: reduce the distance between the scissors part and the conveying part to prevent the cut grass from falling into the pond.
4. Easy to disassemble: The scissors part, conveying part and foam hull can be easily disassembled for maintenance and conveying. The main shaft is not welded.
5. Reduce water inflow and extend service life: The steel pipe of the conveying rack is completely closed, and water cannot enter the steel pipe, which can reduce rust and thus prolong service life
6, easy to use: insert 48V battery pack, you can easily use the switch
4.Application scenario
5.Effect comparison:
6.Structure
7.Detailed Parts
8.Parameters

Product Package
2 meters 3 knives stainless steel river cleaning machine host+ foam ship+ power plate
River cleaning machine host parameters
Dimension	Host machine2M*2M(L*W)
Three knives	2 meters horizontal knife, 0.6 meter vertical knife
Underwater mowing depth	60-70 cm
Material	Blades, chains, straw tubes, frame, Bearing use stainless steel
Weight	About 300kg
Operating hours	Full power can work for 6-8 hours
Host battery	32A 48V motor 500W
Foam ship
2 meters wide, 4.8 meters long, 0.2 meters high. It consists of four sections, each weighing about 40 kg, which can be assembled. At the same time with a strong board to protect the surface of the ship, stepping on it will not be hot.
Propeller	Gasoline propeller

9.Advantages
1. Save labor: the work efficiency of one machine is equivalent to the work efficiency of 30 people;
2. Convenient transportation: On the premise of ensuring the rigidity of the lawn mower, the weight is reduced as much as possible, so that the turning pond can be easily lifted manually.
3. Unique design: reduce the distance between the scissors part and the conveying part to prevent the cut grass from falling into the pond.
4. Convenient disassembly: The scissors part, the conveying part, and the foam hull can all be disassembled and repaired conveniently, and the conveying spindle is not welded.
5. Reduce water ingress and prolong service life: The steel pipe of the conveying frame is fully enclosed, and water cannot enter the steel pipe, which can reduce rust and extend the service life.
6. Easy to use: Insert a 48V battery pack and press the switch to use it easily.
10.Maintenance precautions
1. During use, lubricate each part of the bearing
2. The moving part of the knife rod is lubricated with oil every month, which makes it smoother when used.
3.Electrical parts to prevent water from entering.
11.Company profile Relong Environment Technology Co., Ltd. is located in Qingdao City, Shandong Province. It is a company dedicated to intelligent robots, ship design, water transportation equipment, marine water quality and ecological environment testing, salvage services; industrial automatic control system devices, radar and supporting equipment, communication equipment, which is a high-tech enterprise integrating sales and artificial intelligence software development, including consulting, design, production, installation, and operation management. Relong has built cooperation with colleges and scientific research institutes like The Ocean University of China, Jiangsu Ship Design Institute and Shandong University. And Relong has numerous research and development platforms including Provincial-Level Industrial Design Center, Provincial-Level "Enterprise & Technology" Development Center, Municipal Engineering Research Center And Engineering Laboratory. Relong has a number of independent intellectual property rights, including 33 National Patents, 2 Scientific And Technological Achievements that have reached the international grade and 1 reached China advanced level. Relong has won several first prices in Provincial Technical Innovation Outstanding Achievements And Technology Innovation Outstanding New Product, Technology Progress Award, etc.
12.Related products
13.Product Process:
14.Certificate:
15.Happy visiting time with customers:
16.FAQ
1.How long does the machine guarantee?
We guarantee one year for non-human damaged factor.
2.After service?
Engineers available to come to your factory for supplying training and installation.
3.How to control the quality?
We have professional Engineer and inspector make sure that each part of machine working well before shipment.
4.How to contact you?
You could contact us via TM, Skype, Whatsapp, Wechat, QQ, Email
5.What about payment term?
T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc..
6.Are you a manufacturer or Trade company?
We are a professional manufacturer holding our own International Trade Department,for that we can better understand customer's needs and offer a reasonable price.

---
