Semi Automatic Horizontal Winder for Spiral Wound Gasket

Product Description

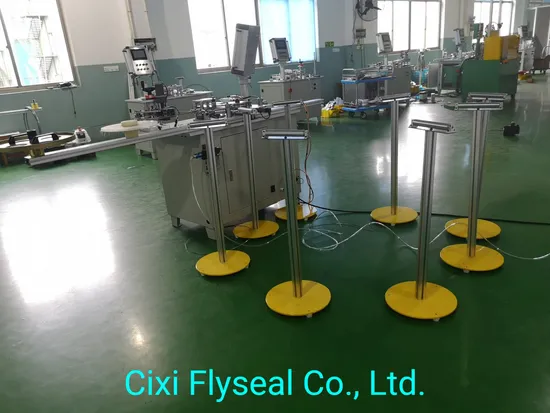

PX2500C-3 Semi-automatic horizontal winder is improved version on base of PX2500C, its size controlling, spot welding function, machine strength are all improved. To make the operating more convenient for the operator, the new version machine use 8 supporting stands to support the gasket, in stead of the large glass table in old version machine. And the new version machine move the HMI screen on left top of the machine, instead of below side in the old version machine, this arrangement allow the worker operating the machine easier.
1-2: Main Technical Parameters

STYLE	PX2500C-3 Semi-automatic horizontal winder (new version)
Producing ability	SWG with or without IR
SWG thickness	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option)
Automatic function	PLC size controlling, semi-Automatic spot welding including flat hoop forming parts for 4.5V SWG
Standard parts	using BOTH preformed hoop and flat hoop, including pressure roller and forming parts for 4.5mm thick SWG, including 8 support stands
Maximum gasket OD	2500mm
Minimum gasket ID	300mm
Total power	8kw
Spindle motor power	1.5kw Servo motor
welder power	6kw
Power supply	380V/220V for option, 3 phases
linear speed	0-1600mm/s
Air compressor	0.6-0.8 MPA
PLC	xinjie
Machine measurement	2600*3400*1550mm
Package measurement	1450*950*1700mm
Machine net weight	320kg

More machine detailed pictures for your reference:

---
