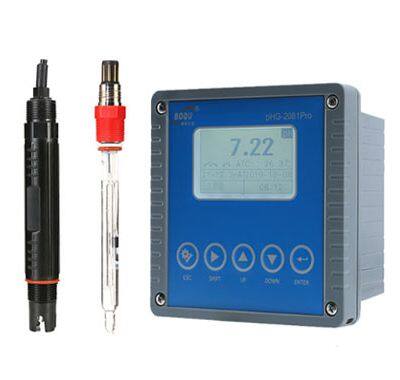

PHG-2081S Digital pH ORP Meter Description
Online measure pH , mV ORP and temperature measurement
Instrument for panel mounted,wall mounted,pipe mounted.
With digital pH or ORP Sensor, the sensor is directly with RS485 Modbus.Calibration will be saved in pH or ORP sensor.
With three relays, two for high and low limit, one for clean time set
This analyzer provides RS485 Modbus RTU communication and datalogger
Application:waste water, drinking water environmental monitoring, fermentation, food production process etc.
PHG-2081S Digital pH ORP Meter Features
1) With digital pH / ORP Sensor and Standard RS485 Modbus.
2) It’s precision and online measurement and can be long distance installation.
3) Reliable and quality designed for harsh application.
4) New technology of Digital pH ORP to improve predictive maintenance.
5) Calibtation data can be save in sensor and reduce the time and costs.
6) With data recording function,user easy to check history data and history curve.
PHG-2081S Digital pH ORP Meter Parameter
Product
| PHG-2081S Digital pH ORP Meter
|
Function
| Online measure pH, ORP and temperature
|
Sensor type
| With Digital pH/ORP Sensor
( Sensor with RS485 Modbus )
|
Measure range
| -2.00~16.00 pH
-2000~+2000mV
-30.0~130.0℃
|
Accuracy
| ±0.01pH
±1%FS
±0.5℃
|
Resolution
| 0.01pH
1mV
0.1℃
|
Power supply
| 90 – 260V AC 50/60Hz
|
Housing material
| ABS
|
Communication
| RS485 Modbus
|
Data recording function
| Yes
|
Protection
| IP65
|
Current output
| Isolated type
2 ways of 4-20mA output
(pH/ORP.temperature)
|
Input Impedence
| >1012Ω
|
Relay
| Two relays for high and low limit
One relay for clean
|
Overall dimension
| 144×144×104mm
|
Hole size
| 138×138mm
|
Installation
| Panel/Wall/Pipe mounted
|
>>
