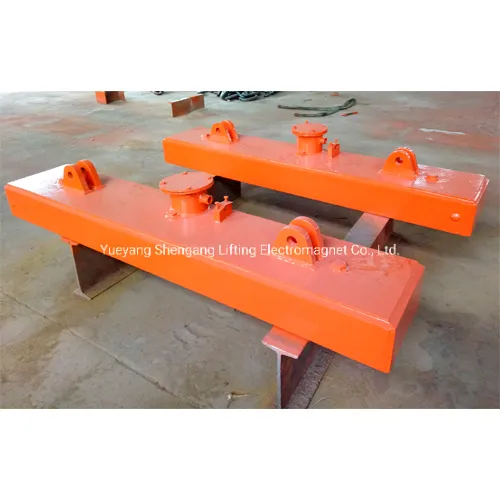

MW84 Rectangular Type Electromagnet Lifting for Steel Plate Lifting

Product Description

MW84 Rectangular Type Electromagnet Lifting for Steel Plate Lifting
Introduction:
Specially designed for lifting and transporting steel plate of medium-thickness. Considering possible bending and deforming may affect safe transportation when lifting long steel plate, please use the combination of several electromagnet. As to medium-thickness steel plate(6mm~32mm), the space length of electromagnets is 3~4m, the space length of extension parts of both ends is half of the space length.
Technical Data:

Model	Cold-state power (KW)	Cold-state current (A)	Overall Dimention (mm)							Weight (kg)
			A	B	C	D	E	F	G
MW84-12040L/1	3.9	17.8	1200	400	1020	400	110	180	30	550
MW84-16040L/1	5.2	23.6	1600	400	1000	700			35	690
MW84-20040L/1	7.92	36	2000	400	970	800			35	840
MW84-24040L/1	9.68	44	2400	400	890	850			35	910
MW84-13042L/1	3.96	18	1260	420	1040	500			30	650
MW84-17042L/2	5.06	23	1680	420	1050	700			35	850
MW84-21042L/2	7.92	36	2100	420	1000	800			35	1050

Complete set of Equipment:
· Lifting Electromagnet
· Spring type cable reel with cable
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type)
· Cable connector / Quick coupling
For inquiry:
--For steel plates:
1. Please inform us steel plate size,such as length,width,thickness?
2. How many steel plates need to be transported for one time?

--For Overhead Crane:
1. Is the overhead crane single beam or double beam? What is the loading(lifting) capacity of the crane?
2. The distance between the crane to ground?

--For Rectifier Control Panel(Cabinet):
1.Do you prefer normal control panel or control panel with battery backup function(this can avoid falling accident when a power fault appears)? If backup function is required,how many minutes are needed?
2.If battery back up function is needed for the control panel ,please confirm whether your crane's brake is AC or DC power?

--Power supply(input power) information: __V, DC or AC?___Hz
FAQ:
1. Why customers choose us?
We are a professional lifting magnet products manufacturer with 20 years experience in China.We have our own factory which can offer better price, control delivery time better based on strict quality inspection and good after-service guarantee.
2.What is your payment terms?
30% T/T deposit,70% balance before factory delivery.Or 100% irrevocable L/C at sight.
3.How long is your delivery time?
Standard model is within 8 workdays after deposit confirmed.
Customerized model will depend on actual production needs.
4.What is the total cost of freight?
Please provide your seaport or airport of destination so that give accurate freight.
5.Can I have product with our design and nameplate?
Of course,we welcome OEM and ODM order. Our engineer will provide you the proposal based on your detailed requirements.
6.What is your warranty and after service?
Our product is with 12 months warranty from delivery. We also support engineer to oversea market. Frankly speaking,with equipment renovation technology, our products tend to free maintenance.

---
