Product Details
Product Description
Product Description

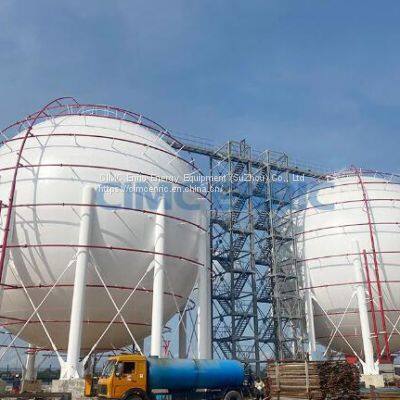

LPG Spherical Tank
The LPG spherical tank is a fixed pressure vessel at normal temperature, with a single-layer tank structure, dedicated to storing liquefied petroleum gas, using low-alloy steel plates for the vessel, with excellent performance, safety and reliability.
DESCRIPTION
LPG Spherical Tank Certifications
What certifications do we own?
We have China A2, A3, C2, SAD and American ASME U U2 professional design and manufacturing qualifications, and meet DOSH certification, GOST certification and other requirements.
LPG Spherical Tank Main functions
Key Features
The main material is made of low-alloy steel plates for containers, and safety accessories can be selected according to different customer needs. International and domestic well-known brands, professional design, manufacturing and installation teams, complete quality assurance system, volume series covering 200m³~10000m³, can be customized according to customer needs .
What is the purpose of the LPG Spherical Tank?
This product is used for large-capacity, pressure-bearing spherical storage vessels.
What benefits will you get from LPG Spherical Tank?
Compared with other storage tanks, the use of spherical tanks can greatly reduce the consumption of steel, generally saving 30% to 45%; in addition, the spherical tank has a smaller area and a small amount of basic engineering.
LPG Spherical Tank Use
Where can this LPG Spherical Tank be used?
This product can be used in areas where the ambient temperature is -50℃~50℃, and it can be used in various regions such as Asia, Africa, and South America.
Who might use this LPG Spherical Tank?
LPG trading companies, gas station operators, and large petrochemical companies are potential customers of this product.
LPG Spherical Tank Use range
Suitable for mixing liquefied petroleum gas, propane, commercial propane, commercial propane butane mixture, propylene, anhydrous ammonia and other C4 mediums, etc.
Some common uses of the LPG Spherical Tank?
Long-term storage
LPG Spherical Tank Advantages
Primary advantages
High quality, safe and reliable;
Why should I buy this product?
Preliminary professional consultation, professional design, manufacturing and installation experience, reliable quality and service guarantee. Comprehensive and full-process EPC services.
-What makes this product different to competitor products?
High cost performance, quality assurance, high responsibility and perfect after-sales service system.
Our LPG Spherical Tank service
Our Policy
HONGTU has the design & fabrication capacity of LPG stationary storage tanks including above-ground tanks, underground tanks and mounded tanks etc. All kinds of tanks could be customized according to the customers' requirements.
Unique deliveries
EXW/FOB/CFR/CIF/DAP
Shipped by bulk vessel
Warranty information
One year warranty after delivery
LPG Spherical Tank Payment method
What payment method do we have?
T/T,L/C
LPG Spherical Tank Export cases
Main markets
Asia, Southeast Asia, Africa, South America, North America
LPG Spherical Tank Specifications
Product specifications
Technical parameters
Design Standard
| ASME VIII-2
|
Total Capacity m³
| 1500
| 2000
| 3000
| 5000
| 6000
| 8000
|
Medium
| LPG
| LPG
| LPG
| LPG
| LPG
| LPG
|
*Payload KG
| 750
| 1000
| 1500
| 2500
| 3000
| 4000
|
Shell Material
| SA516M
| SA537 CL.1
| SA537 CL.1
| SA537 CL.2
| SA537 CL.2
| SA537 CL.2
|
Filling Ratio
| 0.85
| 0.9
| 0.9
| 0.9
| 0.9
| 0.9
|
Tank Net Weight KG
| 258610
| 288617
| 431223
| 636868
| 732400
| 893620
|
Design Pressure MPa
| 1.77
| 1.77
| 1.77
| 1.8
| 1.77
| 1.42
|
Working Pressure MPa
| 1.57
| 1.4
| 1.57
| 1.7
| 1.57
| 1.2
|
MAWP MPa
| 1.77
| 1.77
| 1.77
| 1.8
| 1.77
| 1.42
|
Design Temperature ℃
| -20/50
| -20/50
| -20/50
| -40/50
| 50
| -30/50
|
Working Temperature ℃
| -18/40
| 35
| -15~40
| -35~40
| 40
| -15/40
|
Corrosion Allowance MM
| 1.0
| 1.5
| 1.5
| 1.5
| 1.0
| 2.0
|
NDT
| YES
| YES
| YES
| YES
| YES
| YES
|
Hydraulic Test Pressure MPa
| 2.53
| 2.54
| 2.54
| 2.58
| 2.54
| 2.04
|
Air Tightness Test Pressure MPa
| 1.77
| 1.77
| 1.77
| 1.8
| 1.77
| 1.42
|
PWHT
| YES
| YES
| YES
| YES
| YES
| YES
|
Wind Pressure Pa
| 1035
| 1500
| 1500
| 2000
| 1500
| 3200
|
Snow Pressure Pa
| --
| --
| --
| 300
| --
| --
|
Seismic Intensity
| 7 Degree
| 7 Degree
| 7 Degree
| 8 Degree
| 8 Degree
| 8 Degree
|
Field Soil Category
| II
| II
| II
| II
| II
| II
|
*Please note that different medium component will cause different density and different payload.**Please contact for more different kinds of capacity and standard tanks.
|
Design Standard
| ASME VIII-1
| ASME VIII-2
|
Total Capacity m³
| 600
| 974
| 2000
| 2000
|
Medium
| C4
| Isobutane
| Ethylene
| Ethane
|
*Payload KG
| 278400
| 1809
| 1012600
| 747000
|
Filling Ratio
| 0.8
| 0.9
| 0.83
| 0.83
|
Material
| SA537 CL.2
| SA516M GR485
| SA203 GR.F
| SA203 GR.F
|
Net Weight KG
| 69628
| 109500
| 374367
| 399963
|
Design Pressure MPa
| 0.7/-0.03
| 0.79
| 1.98
| 2.15
|
Working Pressure MPa
| 0.47
| 0.6
| 1.65
| 1.775
|
Design Temperature ℃
| -39/65
| -20/50
| 120
| 120
|
Working Temperature ℃
| 42.5
| 40
| -50~-10
| -50~-10
|
Corrosion Allowance MM
| 2.5
| 1.5
| 4.0
| 4.0
|
Wind Pressure Pa
| 600
| 800
| 300
| 300
|
Snow Pressure Pa
| 400
| 0
| 1800
| 1800
|
Seismic Intensity
| 7 Degree
| 8 Degree
| 6 Degree
| 6 Degree
|
Field Soil Category
| II
| II
| II
| II
|
*Please note that different medium component will cause different density and different payload.**Please contact for more different kinds of capacity and medium tanks.
|
LPG Spherical Tank Components
Package included
Nude Packing
Accessories or Parts
Accessories or Parts will be packed in Steel or Wooden Cases if needed.
>>
