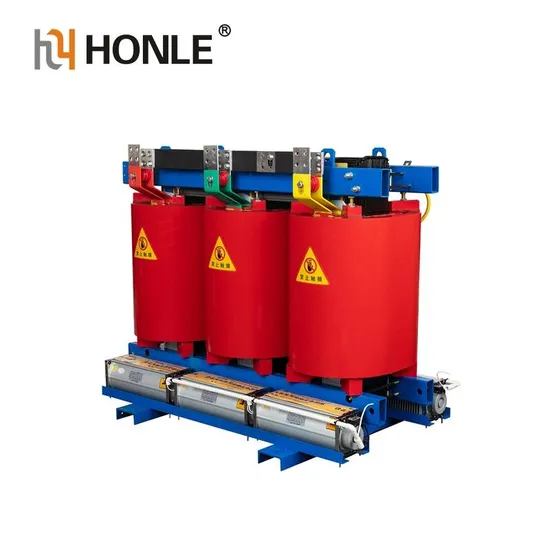

Honle Sc (B) 10 Series Three Phase Dry Type Distribution Transformer Factory Price

Product Description

SC (B)10 Three Phase Resin lnsulation Dry Type Power Transformer is improved and heighten in the base of SC(B) 9. The notable different is Power load loss of SC(B)10 is dropping 15% than SC9, 20% in power no-load loss.
Specification:
Capacity: 30~3500kVA
Voltage grade: 6~35kV
Tapping range: ± 2× 2.5% or others
Number of phases: Three-phase or single phase
Frequency : 50Hz or 60Hz
Connection symbol: Dyn11 / Yyn0 or others
Impedance voltage: 4% 6%
Insulation level: L175AC35/LI0AC3
Insulation grade: F grade

Product Type	Rated Capacity (KVA)	Voltage Combined			Vector- group	No-load Loss (w)	load Loss (w) 120ºC	No-load current (%)	Short- circuit impedance (%)	Noise (dB)
		HV(KV)	Tapping Ranges	LV(KV)
SC10-30/10	30	6 6.3 6.6 10 10.5 11	±5% ±2×2.5%	0.4	Dyn11 or Yyn0	190	710	0.9	4.0	50
SC10-50/10	50					270	1000	0.9		50
SC10-80/10	80					370	1380	0.9		50
SC10-100/10	100					400	1570	0.6		50
SC10-125/10	125					470	1850	0.6		50
SCB10-160/10	160					540	2130	0.6		50
SCB10-200/10	200					620	2530	0.5		50
SCB10-250/10	250					720	2760	0.5		50
SCB10-315/10	315					880	3470	0.5		50
SCB10-400/10	400					980	3990	0.4		50
SCB10-500/10	500					1160	4880	0.4		50
SCB10-530/10	530					1340	5880	0.3		55
SCB10-600/10	630					1300	5960	0.3	6.0	55
SCB10-800/10	800					1520	6960	0.3		55
SCB10-1000/10	1000					1770	8130	0.3		55
SCB10-1250/10	1250					2090	9690	0.25		55
SCB10-1600/10	1600					2450	11730	0.25		55
SCB10-2000/10	2000					3050	14450	0.2		55
SCB10-2500/10	2500					3600	17170	0.2		55

---
