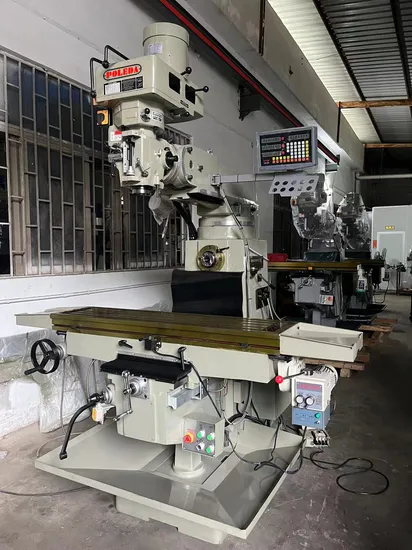

6hv Universal Vertical Turret Milling Machine Made in China

Product Description

Product Description
Characteristics of Vertical and Horizontal Milling Machine
Variable Spindle Axis Direction: The innovative design of our dual-purpose vertical and horizontal milling machine allows for the spindle axis direction to be altered effortlessly according to specific processing requirements. This versatility enhances adaptability across various processing scenarios, significantly boosting processing efficiency.
Powerful Capabilities: Thanks to the adjustable spindle axis orientation, our vertical and horizontal milling machine boasts extensive functionality. It effortlessly handles workpiece surfaces at diverse angles relative to the horizontal plane, catering to an expansive array of processing needs with enhanced power and precision.
Strong Adaptability: Our vertical and horizontal dual-purpose milling machine is engineered for exceptional adaptability across a myriad of intricate processing tasks. Whether it's plane, surface, or specialized angle processing, simply adjust the spindle axis direction to achieve your desired outcomes.
Elevated Production Efficiency: By seamlessly altering the main shaft axis direction, our vertical and horizontal milling machine is capable of processing multiple surfaces in a single setup, dramatically reducing the need for workpiece repositioning and thus significantly enhancing production efficiency.
Effortless Operation: Despite its robust capabilities, operating our vertical and horizontal milling machine remains remarkably straightforward. Users can easily toggle between vertical and horizontal modes with simple adjustments, allowing for smooth adaptation to varying processing requirements.
Product Parameters
Structural Characteristics of Vertical and Horizontal Milling Machine
1. Bed Structure
The bed of our vertical and horizontal milling machine features a resilient double-column structure, engineered for superior strength and rigidity. This design guarantees unparalleled precision and stability. It is complemented by a sliding bed that adeptly supports the spindle and table, minimizing vibration and noise for optimal performance.
2. Workbench Structure
As a critical component, the workbench of our milling machine is designed for secure workpiece fixation during processing. It includes a T-slot for effortless clamping and offers movement in both horizontal and vertical directions. Additionally, the table's rotational capability facilitates efficient bevel machining.
3. Main Spindle Structure
Our spindle, adaptable to vertical or horizontal configurations, features a sophisticated tool clamping system utilizing either chuck or tool handle. With high speed and torque to meet diverse machining demands, it also includes an integrated cooling system to ensure efficient cooling of tools and workpieces.
4. Feed System
The feed system, a crucial component of our milling machine, encompasses the feed shaft, servo motor, and guide rail. It precisely controls tool movement in horizontal and vertical dimensions. The servo motor ensures exact feed shaft control for high precision and speed, while the guide rail maintains feed system stability.
5. Structural Advantages
Our vertical and horizontal milling machine epitomizes structural excellence with its compact design, powerful functionality, and wide-ranging applications. It offers unmatched accuracy and automation, facilitating high-efficiency processing that minimizes manual intervention, thereby saving time and costs.

Product name	Vertical and horizontal milling machine
Product model	6HV
Product technical parameters
dimension	Table size	1372*330MM
	Table load	350KG
journey	Left and right travel (X)	1000MM
	Forward and backward travel (Y)	420MM
	Up and down travel (Z)	380MM
Vertical spindle coefficient	Spindle taper	NT40
	Distance from spindle to table	150-530MM
	Spindle speed	80-5440RPM
	Spindle lift stroke	127MM
	Spindle horse power	5HP
	Arm reach	600MM
Transverse spindle coefficient	Horizontal shaft motor power	2.2KW
	Transverse spindle speed	60-1320RPM
	Transverse spindle taper	NT40
	Transverse spindle travel	120
	Bracket center height	230
Machine profile dimensions	T-slot (width * Slot number * slot distance)	16MM*3MM*65MM
	Milling head tilt Angle	45 front/back side
	Machine size (L * W * H)	2200*2000*2500MM
	Approximate machine weight	2500kgs
	Accessories name and specification	quantity
Standard parts for machine tools	1.Hand oil pump	1
	2.Work light	1
	3.Organ board + protective glue	1
	4.Vertical NT40 tie rod, horizontal NT40 tie rod	1
	5Tools and toolboxes	1

Special parts for machine tools	6.Two axis electronic ruler	1
	7.X-axis automatic feed	1
	8.6 "flat pliers	1
	9.58 piece composite platen	1
	10.NT40 cable nozzle	2
	11. Operation instructions	1
	12.Z axis lifting motor	1

Detailed Photos
Our Advantages
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
