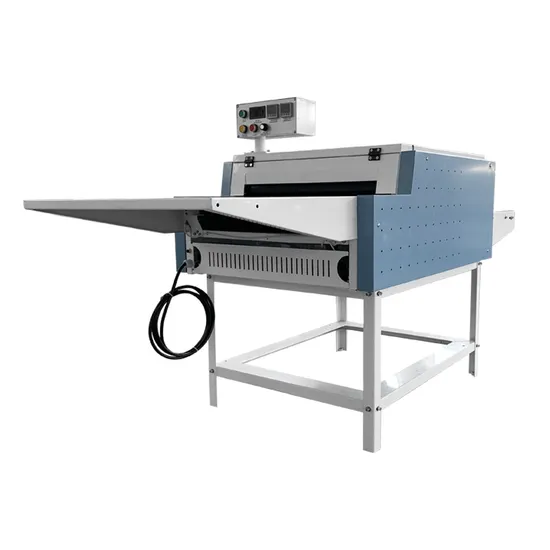

Fully Automatic Hot Melt Roller Heat Press Lining Fusing Machine

Product Description

Equipped with a fully automatic belt adjustment and correction device. The upper and lower belts are driven by a motor to directly correct the deviation device, keeping the belt in a stable position. The pressure is applied by pneumatic pressure, which makes the product more perfect and has better adhesion. The innovative body design reduces the impact of heat on electrical components, improving their durability and lifespan. The driving roller has been improved to a rubber shaft. The sliding phenomenon of the transmission belt has been eliminated, achieving stable and reliable bonding operation. The upper and lower parts are equipped with independent temperature controllers. This machine requires an additional air compressor. Usage: Leather composite bonding, adhesive lining, etc. for clothing/shoe/bag making, etc

PRODUCT NAME	FUSING MACHINE
CORE COMPONENTS	MOTOR/BEARING/GEAR/PUMP/ETC.
MAXIMUM WORKING WIDTH	900MM
WORKING SPEED	0~10M/MIN
NUMBER OF HEATING PLATES	6
SUPPLY VOLTAGE	220V/CUSTOMIZABLE
FUSING PRESSURE	0~0.7Mpa
ELECTRIC HEATING POWER	7.2KW
WEIGHT	194KG
LENGTH OF HEATING ZONE	700MM
HEATING TEMPERATURE	ROOM TEMPERATURE~200°C

---
