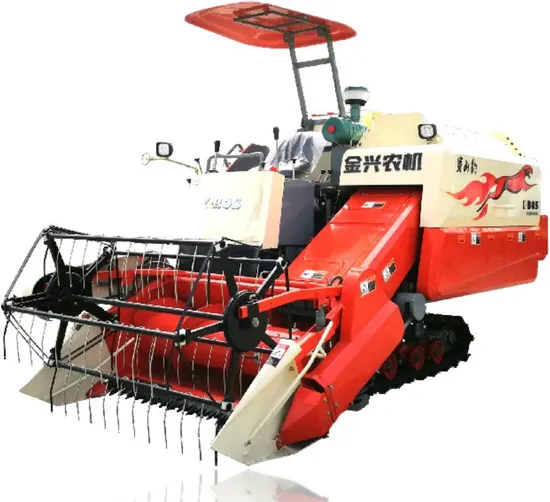

K-Bos 4lz-3.0z Combine Harvester

Product Description

Product Description
Introducing the 4LZ-3.0Z combine harvester, the ultimate harvesting machine designed for hill areas. With its lightweight and compact structure, this self-propelled crawler harvester is an expert in conquering challenging terrains. It is the ideal choice for harvesting a wide range of crops including canola, corn, soybean, and more.
Equipped with energy-efficient and environmentally friendly features, this harvesting machine ensures low fuel consumption, making it cost-effective and sustainable. Its flexible and convenient operation allows for effortless maneuverability, enhancing productivity during harvesting.
This harvesting machine also offers the option to be equipped with various additional crop harvesting attachments, providing versatility and efficiency in the field.
Choose the 4LZ-3.0Z combine harvester for a reliable and high-performing solution in hill areas. Experience the benefits of its advanced technology, including its lightweight design, energy efficiency, and convenient operation.
FIRST small Longitudinal axial flow combine in China
Specially designed for small field in mountain areas hills and island area
Tight constructure light weight wide rubber track
HIGH-STRENGTH engineering plastic sieve
FIVE-BAR pickup reel
Easy-operation and energy-saving
Multi-functional for corn rape seed soybean etc.
Product Parameters

Specification:
Product Model			4LZ-3.0Z Combine Harvester
Overall Dimension Length×Width×Heights ( mm ):			4300×1980×2675
Weight (kg)			2410
Productivity of Operating Hours(hm²/h):			0.05~0.48
Engine	Engine Model		4B2-60U32
	Rated Power ( kw/hp )		44.2KW/60HP,51KW/70HP
	Engine Type		Water-Cooled, 4-Cylinder, DI-Injection, Vertical Turbocharged Diesel.
	Rated Rotation Speed (r/min)		2400
Traveling System	Type of Gearbox:		HST X (3F, 3R) Hydraulic type + HST(3F, 3R)
	Rubber Track(mm):		400 x 90 x 46
	Gauge		920
	Minimum Ground Clearance (mm)		280
Cutting header	Height Adjustment		Hydaulics.
	Cutting Width ( mm )		1550
	Header auger type		Telescopic Screw Conveying
	Pickup Reel		D800mm; Qty 5 Eccentric Tooth(off-centre)
Threshing System	Threshing System		Spiked Tooth Axial Flow
	Threshing Cylinder Quantity		1
	Cylinder Diameter×Length ( mm )		φ540 x 1521
	Cleaning Mechanism Type		Air and Screen Cleaning, Vibrating Sieve adjustable
Grain Storing	Automatic Unloading		950L 360° / 90° Big Grain Tank Capacity 950L with 360° / 90°Unloading Auger
	Manual Operation		350L Small Tank Capacity 400L by Manpower

Our Advantages
We wre open to customize product and soulutions for your local field. Integrated after-sales management system. International mechanism of modern enterprise system. Over 70% sales is oversea market.
