2025 Bcmc 3D Stone Carving Machine Flat Stone Engraving Machine with Accurate Positioning Function Fast Moving Speed for Stone Industry

Product Description

Product Description

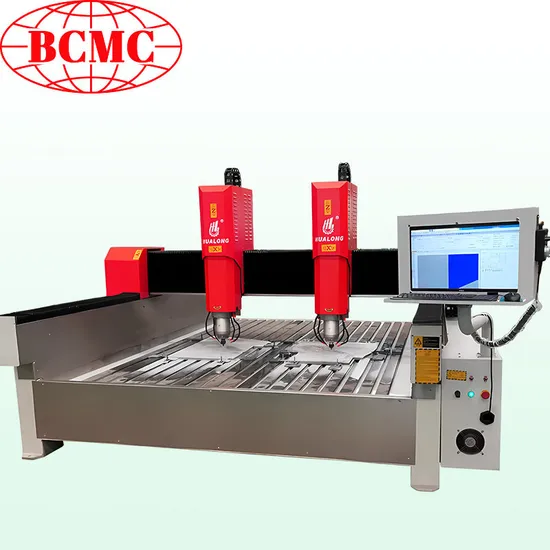

BCMC Machinery BCSD-1530M-2 is a kind of multifunctional 4 axes CNC manufacturing machine for tube column and flat stone engraving. Frequently used in stone processing and home decoration industry for stone processing. Able for granite, ceramic, natural granite profilling and processing. Equipped with saw blade and drill head for different kind of processing requirement.
Main Features: Highly precision. Good final product shape and effect. Processing with two columns in one time. Efficiency and powerful G code supported. Easy control. Versatile function, 2D & 3D engraving, drilling, lettering, profile cutting function supported. Break to rusume function. Continue carving from break point after power resuming from failure. Compatible with Artcam JD Paint CAM software and other software programs. Good heat, shock and bad environment resistance. Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
Technical Parameter

Name	Unit	BCSD-1530-2	BCSD-2515-2	BCSD-4015-2
Workbench dimension	mm	1500*3000	2500*1500	4000*1500
Feeding height	mm	≤400	≤400	≤400
Max moving speed	mm/min	30000	30000	30000
Spindle power	kw	3.7-5.5 Frequency changing water cooling main spindle	3.7-5.5 Frequency changing water cooling main spindle	3.7-5.5 Frequency changing water cooling main spindle
Spindle rotating speed	rpm/min	6000-24000	6000-24000	6000-24000
Engraving tool	mm	Φ1-16	Φ1-16	Φ1-16
File format		G code	G code	G code
Positioning precision	mm	±0.03	±0.03	±0.03
Repeated positioning precision	mm	±0.02	±0.02	±0.02
Control system		NC studio/Shanlong/RichAuto DSP (Customizable)
Dimession(L*W*H)	mm	4000*2300*2200	3500*2300*2200	5200*2300*2200

Detailed Information For Spare Parts:
Control system -- CNC
Brand: NcStudioOriginal: China
NCstudio CNC system, keyboard operation, large screen display, easier to operate and maintain, more humanized design
Water-cooling Spindle
Power: 3.5/4.5/5.5 kw (customizable)
Rotating Speed: 6000-24000 rpm/min
Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed
and safeguard stability for longtime work.
Guide Rail, Ball Screw
Origin: Taiwan, China
High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality
engraving.
Auto Lubricating System
Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.
Hand Wheel
Remote or close to control the movement of working heads, especially convinient for positioning the original processing point.
Application:* Bas-reliefs, Line engraving Cutting, Edge inversing
* Funeral tablets/gravestones, Milestones
* commemorative plates
* Furniture, Fireplace.
* Countertops, Sink hole, grooving, shower trays

---
