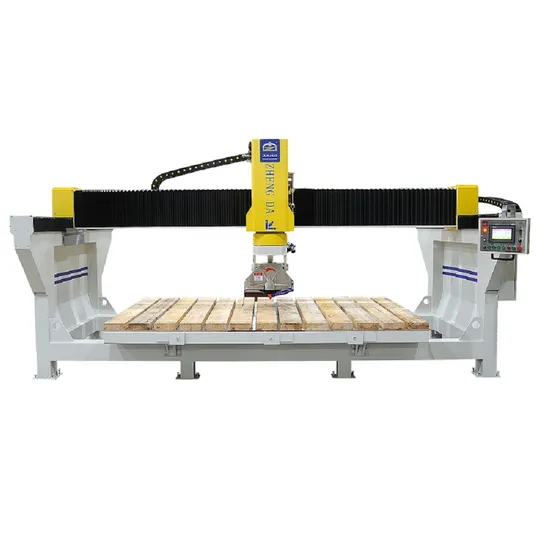

porcelain Cutting Machine 3axis with 45 Degree Cutting

US$13,000.00-14,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ZDH-350-2
Usage
Granite, Marble, Sintered
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
Artificial
Certification
ISO, CE
Transport Package
Double Bubble
Specification
1*40HQ
Trademark
ZHENGDA
Origin
China
HS Code
8464909000
Production Capacity
100sets/Year

Product Description


Product Parameters
Model ZDH-350-2
Max. Processing Dimension 3200*1900*50MM
Machine head rotate degree 45°
Worktable tilt 0-85°
Main engine power 15KW
Total power 18.5KW
Outline dimension 5420mm*2800mm*2350mm
Weight 3.5T

Detailed Photos
Machine body This machine use integrated structure,The bed is firm and stable,No need to disassemble ,easy to install.


Machine head can tilt 45 degree to make chamfer cutting

What does this machine can process?
Straight cut and chamfer cut

It has the advantages of small occupation area, simple operation, fast processing speed
Company Profile
60000 square meters standard workshop. 286 employees. 6000+ stations annual output. 30+ sales country. TOP TEN manufacturer brand in China.
Our company fully introduced advanced laser application technology at home and aboard, collecting various high-end production machine tools and first-class industry talent, committed to creating the best stone processing machines.
After Sales Service
We can provide overseas aftersales service,we have professional aftersales team.
For small problem, we can use email /whatsapp/wechat to talk or video to solve .
We can also send engineer to your factory to help you install the machine and train how to use the machine.
Packaging & Shipping
Use double bubble to pack the machine ,fix the machine very well in container
