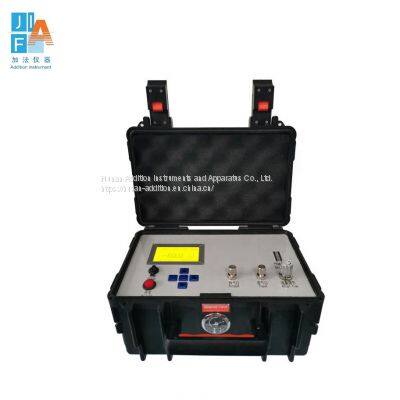

Gaseous Fuels Dew Point Tester
Model:JF22634
Introduction
This instrument is based on a high-quality high-precision dew point sensor, with fast response speed and high sensitivity. Battery-powered, low-power portable design, easy to use and operate. It can measure trace moisture content in various inert gases, and is suitable for various occasions with strict control requirements for moisture content.
Application Fields：
Petrochemical, natural gas, military, industrial gas, semiconductor industry, drying industry, food industry, power industry, machinery manufacturing, air separation industry, pharmaceutical industry.
Technical parameter:
1.Applicable standards: ASTM D1142, GB/T 27896, GB/T 22634
2.Measuring range: -80.0～+20.0℃.
3.Accuracy: ≤±1.0℃F.S.
4.Repeatability: ≤±1℃. Resolution: 0.1℃.
5.Sample gas flow: 2500～3000mL/min.
6.Sample gas pressure: 0.05 MPa≤inlet pressure≤0.1MPa. (The air outlet must be at normal pressure)
7.Response time: T90≤15 seconds
8.Warm-up time: ≤3 minutes
9.Power source: 220VAC±10%, 50Hz±5% (charging power supply); rechargeable battery (working power supply) that comes with the instrument.
10.Working environment: Temperature: -15℃～+45℃. Humidity: ≤90%RH (no condensation)
11.Weight: about 2kg.
Features：
1.With automatic calibration function, fast response and high sensitivity.
2.Excellent long-term stability with a recommended calibration interval of 2 years.
3.Withstands condensing environments and recovers quickly.
4.Dot matrix LCD display, optional display unit: dew point temperature or volume ratio (PPM/V), absolute humidity (mg/m3).
5.The measurement data is automatically recorded in real time, and the recorded data can be displayed in the form of a curve or a list.
6.Powered by large-capacity battery, the battery can work continuously for about 8 to 10 hours
>>
