Plywood Produce Line Machine: Tree Cutting Machines / Veneer Guillotine Machines / Plywood Core Veneer Machine

Product Description

Product Description
01 VENEER MAKING LINE: DEBARER+PEELING+DRYER

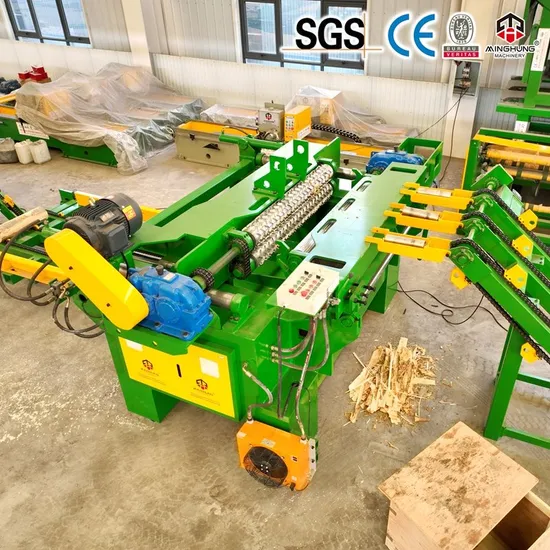

STEP1: DEBARKING MACHINE

Model	4feet Log Debarker	8feet Log Debarker
Max log length	1400mm	2600mm
Max opening	550mm	800mm
Speed	70m/min	70m/min
Single roller power	11kw	15kw*2pcs
Double roller power	11kw	15kw*2pcs
Peeling knife size	1500*180*16mm	2700*180*16mm
Weight	4500kg	9000kg

STEP 2: PEELING MACHINE

Model	4feet Veneer Peeler	8feet Veneer Peeler
Max log length	1400mm	2600mm
Max opening	500mm	640mm
Thickness	0.5-4.0mm	0.5-4.0mm
Speed	30-100m/min	30-100m/min
Single roller motor	7.5kw*2pcs	15kw*2pcs
Double roller motor	7.5kw*2pcs	15kw*2pcs
Clipper size	1500*90*12.7mm	2700*90*12.7mm
Total size	4500*2300*1500mm	7200*2300*1700mm
Weight0	9000kg	135000kg

STEP 3: DRYING MACHINE

Floors	4
Heating area	9sections=18m
Cooling area	1sections=2m
Heating motor	11kw*9pcs
Cooling motor	4kw*2pcs
Transmission speed	1-17m/min
Heating medium	oil/steam
Drying temperature	150-180ºC
Capacity	55-60cbm/22h

02 PLYWOOD FORMING LINE: SIZING+COLD+HOT PRESS

STEP 4: GLUING SIZING MACHINE

Diameter of coating roller	φ310mm
Line speed	20-30m/min
Transmission way	Gear&Chain
Size	3250*1250*1700mm
Weight	1000kg

STEP 5: COLD PRESS MACHINE

Pressure	400t /500t /600t
Cylinder diameter	Φ320*2pcs /Φ360*2pcs /Φ260*6pcs
Power	13.2kw
Max opening	1800mm/1200mm
Size	3600*1370*4000mm
Weight	15000kg/25000kg

STEP 6: MULTI-LAYERS HOT PRESS MACHINE

Pressure	500T/800T	800T
Oil cylinder	Φ320*3000MM*4pcs	Φ320*4000MM*4pcs
Plates distance	100mm	100mm
Power	63kw	81.5kw
Closing time	35s	35s
Size	3590*1370*7440mm	3590*1370*8960mm
Weight	93000kg	104000kg

03 PLYWOOD TRIMMING LINE: EDGE CUTTING+SANDING MACHINE

STEP 7: EDGE TRIMMING SAW MACHINE

Size	4*8feet or customerized size
Working speed	70-120m/min
Capacity	500pcs/h
Transport	roller
Working style	Infrared ray
Size	9000*3500*2300mm
Weight	9000kg

STEP 8: SANDING MACHINE

TYPES	SINGLE/DOUBLE SIDES
SANDING WIDTH	40-1300MM
THICKNESS	3-100MM
SANDING BELT SIZE	1300*2620MM
MAIN MOTOR	45KW*1PC+30KW*1PC
SIZE	3350*2900*2440MM
WEIGHT	9500KG

Delivery&Shipping

Company Profile
Shandong Linyi Minghong Wood Machinery Co., Ltd. is a professional enterprise specializing in the production of wood processing equipment. Located in Linyi City, Shandong Province, our company possesses advanced production techniques and equipment. We mainly manufacture wood drying machines, wood planers, wood cutting machines, and other woodworking machinery equipment. Our products are reliable in quality and superior in performance. Over the years, we have been committed to providing customers with high-quality products and excellent services, earning widespread trust and praise from our customers. We are willing to cooperate with customers at home and abroad for mutual development and creating a better future together.
Thanks for your interest and trust in our product. If you have any questions or need further assistance, please feel free to contact us. We look forward to establishing a long-term partnership with you and providing comprehensive support for your business development.
--Shandong Minghung Wood Machinery CO.,LTD

---
