High-Precision CE Approved High Quality Durable Multiple Repurchase Casting Machine with Good Service

Product Description

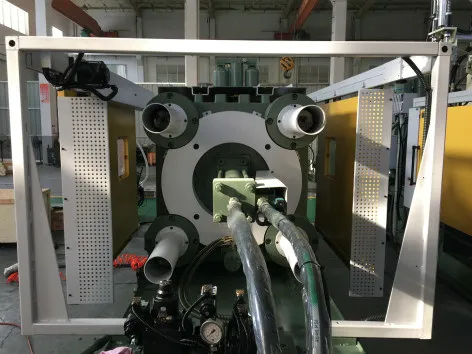

Cold Chamber Die Casting Machine C/680D
Specifications
1.cold chamber die casting machine.
2.IS09001:2000 Certification and CE Safety Certification
Strategy

The goal of manufacturing famous products and developing the company for centuries has been passed on from generation to generation. In past 20 years, we always provide perfect cold/ hot chamber die casting machine and sincere service.

* With a history of over 20 years * Factory Area : 20,000 square meters
*Employees : More than 200 *Production Capacity : 1,000-sets yearly capacity
*Company owed Tech & Research center * Main Machines: 50sets

SCAN:

1.680T Cold die Casting Machine

2.Suitable for aluminum,zinc and copper alloy

3.PLC and person-machine

4.4-rod pilot elastic framework for excellent rigidity

5.Proportional relief and flow control valves

6.PLC and person-machine interface

What product this machine can make? ----- The cold chamber die casting machine is suitable for die casting of non-ferrous metal with low melting point, such as aluminum, zinc and copper. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.Deals with the research and manufacturing of high precision die casting machines for many years(start from 1995). With "WELLISH"brand cold chamber series(140-2080Tons), hot chamber series(30-200Tons), MG ALLOY series(140-1380Tons). Frequency translation&servo drive saving-energy system techology, with high quanlity moulds and furnace and auxiliary machines provide AL/MG/Copper/Zinc Alloy prodct solutions for you.

Specification		C/680D
Clamping Force	KN	6800
Clamping Stroke	mm	680
Die-Thickness (Min-Max)	mm	350-900
Platen Size(H *V)	mm	1290* 1290
Space between Tie-bars	mm	860*860
Diameter of Bars	mm	160
Casting Force	KN	240-680
Casing Stroke	mm	640
Injection Plunger diameter	mm	70 80 90
Max. Casting Volume (AL)	kg	4.3 5.7 7.2
Max. Casting Volume(MG)	kg	4.3 5.7 7.2
Casting Pressure (Min-Max)	Mpa	73.5-158.5 56-121 44.5-95.9
Cast Projection Area	Cm2	397-1600
Injection Position	mm	0, -250
Ejector Space	mm	280
Extruding Flange Diameter	mm	165
Height of Extruding Flange Pattern	mm	15
Ejecting Force	KN	315
Ejecting Stroke	mm	150
Dry Cycle Time	s	12
System Working Pressure	Mpa	16
Motor Power	KW	37
Tank Capacity	L	1000
Machine Weight	kg	31000
Overall Dimensions of Machine (L*W* H)	mm	8400*2100*3000

WELLISH precision die casting machine are widely used for lead , zinc,copper , aluminum , magnesium etc non-ferrous die casting in the industries of aviation & aerospace , ship & vehicles , electric and electronic appliances , instruments and meters , medical facilities , hardware's etc.
ALLWAY---ALWAYS ON THE WAY WITH YOU !

---
