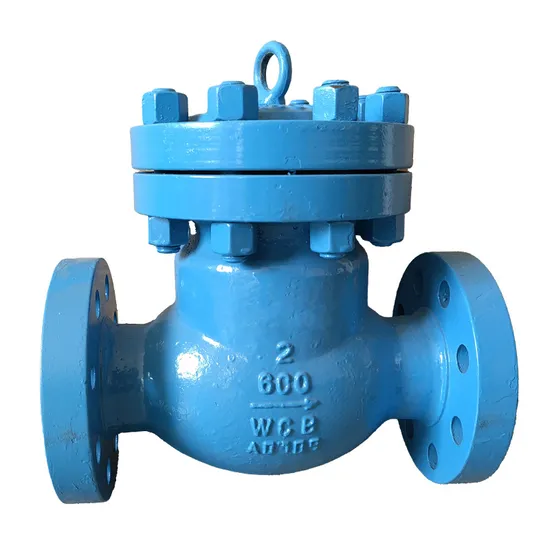

600lb 2in Carbon Steel Wcb ASME RF Swing Check Valve

Product Description

Products OverviewPort: Full Port
Size: 1/2" to 24"
Pressure: CLASS 150/300/600/900/1500/2500
Body: Carton Steel A216 Gr.WCB
Stainless Steel 316 - A351 Gr.CF8M Stainless Steel 304 - A351 Gr.CF8
SEAT: METAL SEAT
Max Temp: 450ºF 232ºC
Ends:ASME B16.5-RF ASME B16.5-RFJ ASME B16.11-Butt-WeldFeatures:
Swing Disc Designed
Bolt Cap Construction
Investment Casting
Graphite+SS GasketStainless Steel Disc
Design Standard: API598/ASME B16.34 Test Standard: NACE MR-0175

No.	PART	MATERIAL
1	Body	A216 WCB / A351-CF8M / A351-CF8
2	Cover	A216 WCB / A351-CF8M / A351-CF8
3	Disc	ASTM A105+13%CR
4	Hinge	A216 WCB / A351-CF8M / A351-CF8
5	Fork Part	A216 WCB / A351-CF8M / A351-CF8
6	Seat Ring	ASTM A105+13%CR
7	Hinge Pin	ASTM A29-1020
8	Disc Washer	Carbon Steel
9	Disc Nut	Carbon Steel
10	Disc Nut Pin	Carbon Steel
11	Gasket	Stainless Steel
12	Stud	ASTM A193 B7M
13	Stud Nut	ASTM A194 2HM
14	Eyebolt	Carbon Steel

FAQQ1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.Otherwise it is 15-20 days if the goods are not in stock, it is according
to quantity.
Q3. Do you have any MOQ limit for valve order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.

---
