B13/400 High-Speed Perfect Book Binding Production Line Hot Melt Gluing Binder

Product Description

Equipment installation plan:
Product composition:

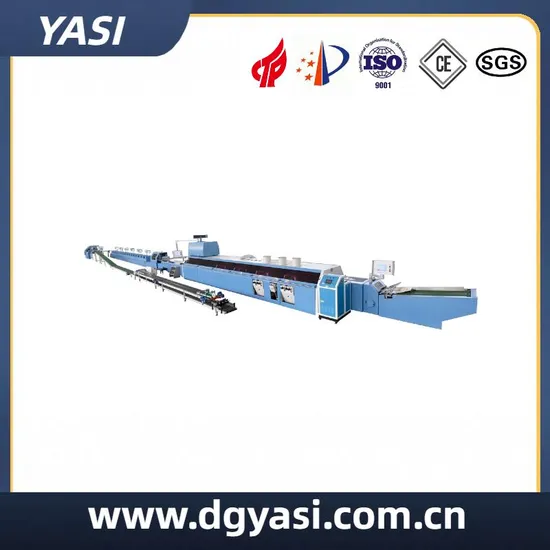

This model is a large-scale automatic production line designed and manufactured by Dongguan Yasi Machinery Company. It has combined gathering and glue binding functions. Its maximum speed can reach 13,000 cycles per hour. This machine has revolutionized the traditional design concept. The gathering station incorporates a sleek and streamlined design, ensuring stability and reliability. The main machine utilizes a double-bottom glue and two support towers, guaranteeing that the pages remain secure and won't come loose or fall out. This results in books that are both sturdy and neatly aligned, without compromising productivity and efficiency.
Latest design: Streamlined gathering station operating smoothlyTechnical Data:

High-Speed Perfect Binding Production Line	KUBUS B13/400	Quantity of clamps	40
Max operating speed	13000 cycles per hour	Quantity of gathering stations	18
Max Book block size	400×305mm	Power consumption	70 KW
Min Book block size	140×120mm	Standard voltage	380V/220V, 50 Hz, 3 phases
Book block thickness	3-60 mm	Air consumption (external supply)	035 m3 /minute 10 bar
Cover length	140-400mm	Dimensions (length x width x height)	41100×8200×2900mm
Cover width	240-630mm	Net weight	12000kg
	L H S Max size 430 305 60mm Min size 140 120 3mm		AUSCP KUBUS B13/400

Functions & features:
This machine is an automatic gluing binding equipment suitable for the processing of educational materials, magazines, notebooks, books, and other printed materials.The gathering station in this binding line offers customizable options for users based on their specific needs Starting with signature gathering, each station automatically arranges the signatures in proper order Moreover, every station is equipped with an automatic detection device If any issues like doubling, missing, leaking, or incorrect signatures arise, the correction station will promptly remove them without interrupting the machine's operation. The gathering station also features a streamlined design that allows for signature dropping without the need for drum rolling. This ensures a simple, fast, stable, and reliable operation.The processed book block is automatically shaken and aligned as it passes through the binding machine channel Next, it undergoes a series of mechanical processes, including clamping, rough trimming, fine milling, slotting, cleaning, bottom gluing, side gluing, and final finishing gluing. A mechanical arm precisely delivers the cover, presses it down, and bonds it to the book block Following this, the book is shaped and formed by two scissor-shaped support towers before being transported by a conveyor belt. Throughout the entire process, an electrical control system monitors and detects each step. If there's any collision, missing cover, or multiple covers, the machine will automatically stop and alert the operator for troubleshooting.The flawlessly bound book is conveyed by a multi-layer conveyor belt, designed to save space, to Yasi Machinery's dedicated three-knife trimmer, capable of trimming both thin and thick books. This advanced machine performs precise cuts on the book's foredge, followed by the head and tail, ensuring high precision throughout the trimming process.The entire machine is equipped with a PLC control system and features a user-friendly touch screen for effortless operation. It incorporates an automatic template switching function, automatic tracking, and detection function, along with an automatic alarm system This ensures a smooth and intuitive user experience, making the operation extremely user-friendly.

---
