Basic Info.
Function
Storage Pressure Vessel
Application
Liquefied Gas
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Video Outgoing-Inspection
Provide
Machinery Test Report
Provide
Key Selling Points
Long Service Life
Transport Package
Provide
Specification
3464*1866*1751
Origin
Shijijazhuang Hebei
Production Capacity
5000 Pieces Per Year
Product Description
Product Description
We adopt high vacuum multi-layer winding technology, which has better insulation performance and longer vacuum service life, The material of our products is mainly 304 stain-less steel and carbon steel, Which is suitable for the use of environment in all regions of the world . Compared with traditional tanks, our products are lighter in weight. It is more conducive to the transportation of products and the use of customers. Very low static evaporation rate, reduce the loss in the use process.
The company uses automated equipment to detect production and improve production efficiency. Short delivery time, good thermal insulation performance and competitive price are the biggest advantages of our products. Can be customized according to customer specified valve, pipe, and location production.
Products ranging from 1 to 500m²are available can be customized according to different needs of customers. The working pressure of the storage tank ranges from 0.8Mpa to 3.5Mpa.
Product Parameters
| Technical Parameters of Horizontal Gryo-Storage Tanks |
| Gross Capacity(m³) | Working Pressure
(MPa) | Max. Theoretical Filling Volume (kg) | Weight (kg) | Material | Pressurizer
(N.m³/h) | Boundary Dimensionmm(mm)
(Length * Width * Height) | Diameter of Outer Vessel
(mm) |
| LO2 | LN2 | LAR | LNG | LCO2 | strain strengthening | Non -
strain strengthening | Inner Vessel | Outer Vessel | strain strengthening | Non-strain strengthening |
| 3 | ≤0.80 | 3237 | 2300 | 4004 | 1210 | / | | 1670 | S30408 | Q345R | 15 | 3350*1920*1614 | 3350*1612*1920 | 1600 |
| ≤1.60 | / | 1670 | 1905 |
| ≤2.10 | 3167 | 1791 | 2142 |
| 5 | ≤0.80 | 5198 | 3693 | 6429 | 1943 | | | 2491 | S30408 | Q345R | 15 | 3570*2112*2400 | 3570*2114*2440 | 2100 |
| ≤1.60 | / | 2595 | 2889 |
| ≤2.10 | 5085 | 2823 | 3280 |
| 10 | ≤0.80 | 10818 | 7686 | 13380 | / | | | 3617 | S30408 | Q345R | 15 | 6080*2362*2114 | 6080*2362*2116 | 2100 |
| ≤1.60 | / | / | 3773 | 4529 |
| ≤2.10 | 4042 | 10581 | 4574 | 5068 |
| Technical Parameters of Vertical Gryo-Storage Tanks |
Geometric
Volume
(cm³) | Working Pressure
(MPa) | Liquid Gases weight ( kg ) | Tare
Weight (kg)
| Inner Vessel | Outer Vessel | Pressurizer
(N.m³/h) | horizontal
(Length * Width * Height) | Diameterof Outer Vessel
(mm) |
| LO2 | LN2 | LAR | LNG | LCO2 | Boundary Dimensionmm( mm ) |
| 3 | ≤0.80 | 3066 | 2178 | 3792 | 1145 | / | 1606 | S30408 | Q345R | 9 | 3464*1866*1751 | 1600 |
| ≤1.60 | / | 1864(1930) |
| ≤2.16 | 2999 | 2110 |
| ≤2.16 | / | / | / | / | 3167 | 2250 | 16MnDR | / |
| 5 | ≤0.80 | 4924 | 3499 | 6091 | 1840 | / | 2230 | S30408 | Q345R | 10 | 3534*2365*2165 | 2000 |
| ≤1.60 | / | 2595(2663) |
| ≤2.10 | 4816 | 2995 |
| ≤2.16 | / | / | / | / | 5084 | 3127 | 16MnDR | / |
| 6 | ≤0.80 | 6093 | 4329 | 7536 | 2276 | / | 2460 | S30408 | Q345R | 10 | 4034*2365*2165 | 2000 |
| ≤1.60 | / | 2951(3036) |
| ≤2.10 | 5959 | 3335 |
| ≤2.16 | / | / | / | / | 6290 | 3485 | 16MnDR | / |
| 8 | ≤0.80 | 8208 | 5832 | 10152 | 3067 | / | 3000 | S30408 | Q345R | 20 | 4950*2365*2165 | 2000 |
| ≤1.60 | / | 3860 |
| ≤2.10 | 8028 | 4230 |
| ≤2.16 | / | / | / | / | 8474 | 4430 | 16MnDR | / |
| 10 | ≤0.80 | 10260 | 7290 | 12690 | / | / | 3617 | S30408 | Q345R | 20 | 5806*2365*2165 | 2000 |
| ≤1.60 | / | / | 4529 |
| ≤2.10 | 3834 | 10035 | 5068 |
| ≤2.16 | / | / | / | / | 10592 | 5350 | 16MnDR | / |
| 15 | ≤0.80 | 15390 | 10935 | 10935 | / | / | 4950 | S30408 | Q345R | 20 | 8025*2365*2165 | 2000 |
| ≤1.60 | / | / | 6220 |
| ≤2.10 | 5751 | 15052 | 6950 |
| ≤2.16 | / | / | / | / | 15052 | ~7450 | 16MnDR | / |
| Technical Parameters of Gryo-Storage Tanks for Carbon Dioxide (CO2) |
| Type of Insulation | Gross
Capacity | Effective Volume | Work Pressure
(MPa) | Tare Weight
(kg) | Max. Theoretical Filling Volume for LCO2 | Overall Dimensions(mm)
(Length * Width * Height) |
| Carbon Foam Insulation | 2m³ | 1.9m³ | 2.16 | 755 | 2119 | 3250*1030*1265 |
| 3m³ | 2.84m³ | 1050 | 3167 | 2900*1330*1565 |
| 5m³ | 4.74m³ | 1850 | 5285 | 3480*1530*1865 |
| Two Carbon Vacuum Insulation | 2m³ | 1.9m³ | 2.16 | 1780 | 2119 | 3730*1212*1412 |
| 3m³ | 2.84m³ | 2050 | 3167 | 3425*1512*1754 |
| 5m³ | 4.74m³ | 3070 | 5285 | 3900*1916*2162 |
Detailed Photos
Production Workshop
Company Profile
Hebei Huayu Environment Engineering Co., Ltd. is an emerging high-tech enterprise specializing in the design, manufacturing and R & D of low-temperature pressure vessels. The company's leading products include low-temperature welded insulation bottles, low-temperature storage tanks, D1 and D2 pressure vessels. With an annual output of more than 40000 low-temperature bottles and more than 2000 storage tanks. The company has professional production and testing equipment at home and abroad, such as large-scale hydraulic tilting plate bending machine, full-automatic NC four roll plate bending machine, full-automatic NC longitudinal seam and circumferential seam welding machine, vacuum pumping unit, NC winding machine, electrostatic spraying, helium mass spectrometer leak detector, spectrum analyzer, full-automatic ultrasonic flaw detector, magnetic powder flaw detector, X-ray digital imaging system and so on.
Certifications

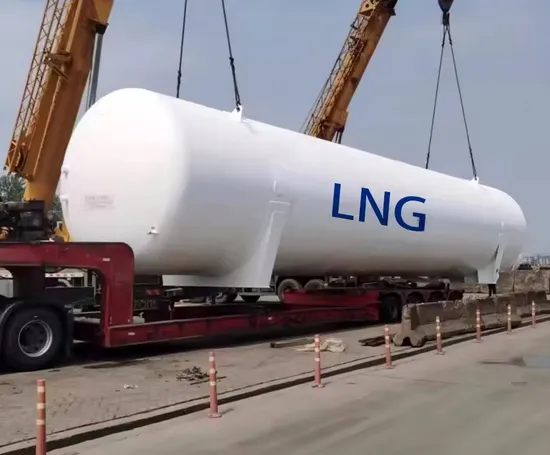

Packaging & Shipping
FAQ
Q1:Are you manufacturer?
A1:Yes, we're an experienced manufacturer.
Q2:Can we use our LOGO and design?
A2:Of course, we offer OEM/ODM service.
Q3:What's the sample cost?
A3: The sample and shipping charges will be required.
Once the mass production order is placed, the sample charges will be deducted.
Q4:Do you inspect the finished products?
A4: Yes, each step during production will be inspected by our Qc team.
Q5:What's the payment term?
A5:TT,LC, Trade Assurance Payment,Paypal, Western Union.
Q6:Any warranty for the goods?
Q6:Normally 1 year warranty after delivery except artificial damage.
>>
