Oinment Making Machine

Product Description

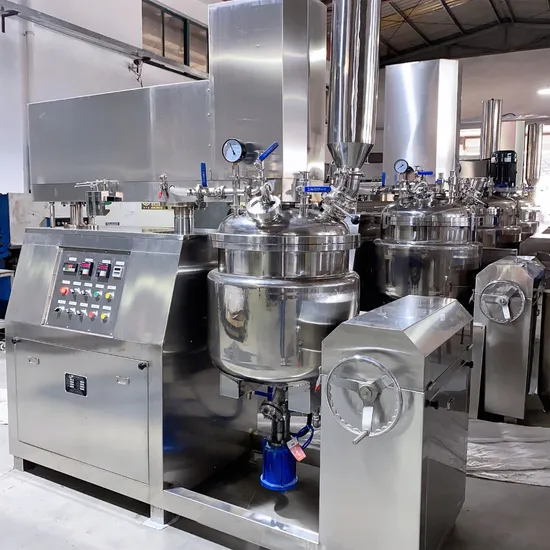

ZJR VACUUM HOMOGENIZING MACHINE
Available for heating, melting, homogenizing and emulsifying materials, it is ideal device for paste-cream products of middle and high grades. This equipment includes oil phase boiler, water phase and emulsification vessels, operation platform and control tank.
FEATURE:
A. With sufficient mill and emulsification for the high adherence(over 50000 C. P. S. ), the diameter of the emulsified grain can reach 2-5μ M.
B. Using vacuum material sucking device with high frequency, simple and convenient operation.
C. The machine can be used for heating, melting, vacuum, homogenizing and cooling.
D. It is made of stainless steel and can be healthful and axenic in operation.
E. It is easy for cleaning.
F. The newest shearing and cutting homogenizing machine of non-clearance ceramic can make the diameter of the material reach 0.5μ M...

Main technical parameters:

Type		ZJR-5	ZJR-10	ZJR-20	ZJR-50	ZJR-100	ZJR-200	ZJR-300	ZJG-500	ZJG-1000
Emulsifying Phase Vessel	(L) Working Capacity (L)	5	10	20	50	100	200	300	500	1000
	(kW) Rotation of Spatula (kW)	0.1	0.1	0.37	0.75	1.50	2.20	2.20	3.0	7.5
	(rpm) Rotation of Homogenizing Unit (rpm)	50	50	9-52	22-126	21-118 ()	21-118 ()	21-118 ()	0-80	0-80
	(kW) Power of Homogenizing Unit (kW)	0.18	0.18	0.55	0.75	1.5	4.0	4.0	7.5	11

---
