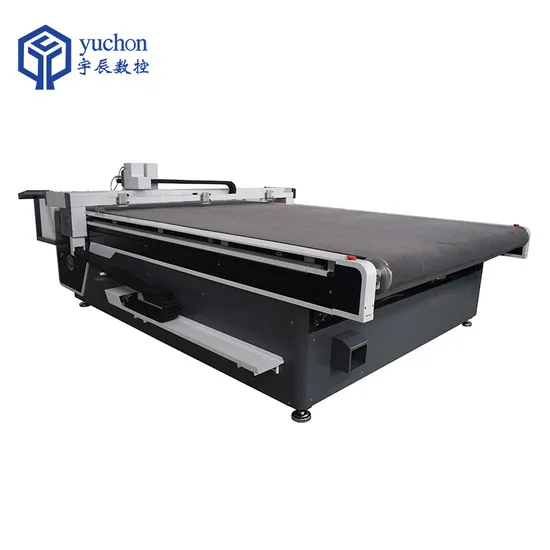

Automatic Multi-Layer Cloth Fabric Cutter with Vibration Oscillating Cutting Machine

US$13,800.00-19,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
1325A
Condition
New
Application
Fabric, Cloth
Name
Digital Cutting Machine
Model
Yc-1325A
Max. Cutting Speed
1200mm/S
No-Load Speed
1500mm/S
Multifunctional Head Cutting Tools
Oscillating Knife,Driven Rotary Cuttting Tool
Cutting Thickness
0.1-20mm
Cutting Accuracy
0.1mm
Transmission Interface
Ethernet
Motor
Panasonic Servo Motor
Transmission System
Smtycc Linear Rail and Rack
Fixed Mode
Vacuum Absorb
Rated Power
11kw or Others
Operation Properties
Online
Safety Device
Infrared Blocking Device,etc
Cutting Materials
Fabric, Leather, PVC and Other Flexible Materials
Transport Package
Wooden Cases.
Specification
2500*1300mm
Trademark
YUCHEN
Origin
Shandong Jinan
Production Capacity
50 Sets/Month

Product Description


Product Parameters
Model YC-1625L
YC-1625A		 YC-1630L
YC-1630A		 YC-1830L
YC-1830A		 Other sizes are customizable
Working area 2500×1600mm 3000×1600mm 3000×1800mm
Operation properties Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device Infrared blocking device,Emergency stop button switch, Intelligent anti-collision device.
sensitive response; safe and reliable
Max. cutting speed 1200mm/s
No-load speed 1500mm/s
Multifunctional head cutting tools Oscillating knife cutting tool, Driven rotary cutting tool,Pneumatic cutting tool, Milling tool, Kiss cutting tool,V-cutting tool, Creasing wheel, Punching tool, Drawing pen etc.
Cutting thickness 0.1-20mm ; 0.1-60mm0.1-20mm (subject to material) ; 0.1-60mm(Optional)
Cutting accuracy ±0.1mm
Transmission interface Ethernet
Transmission system Panasonic Servo Motor/SMTYCC Linear rail and rack
Fixed mode Vacuum absorb
Supply voltage AC 220V 380V±10%,50HZ
Rated power 11KW or others

After Sales Service
FAQ 1.payment terms:
L/C,Western Union,T/T,Paypal
2.Delivery time:
Standard machine:7-15 days
Customized machine:10-25 days
3.Packing:
plastic film inside and plywood case for outside packing
4.Transportation fee
Ship by sea or airplane, railway. Actual cost reimbursement
5.instal
We offer video teaching,and we have professional technicians who will help you to install, guide and train
6.After sales service
1).3 year free warranty
2).Life time free maintenance service.
3).24 hours online service, free technical support with different languages.
4).Door to door technical support when needed
