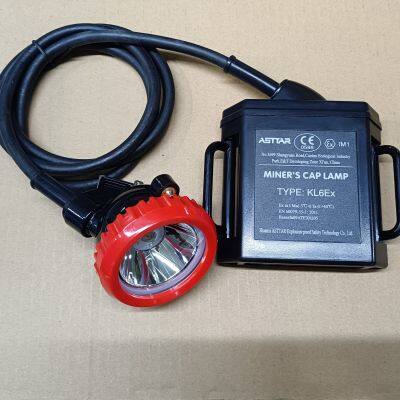

Corded LED miner cap lamp KL6Ex
KL6Ex ATEX CE certified 6Ah rechargeable LED corded miners helmet lamp
Product Description
• ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard:
EN 60079-0: 2012, EN 60079-11: 2012, EN 60079-35-1: 2011, EN 50303:2000
• This lamp is specially designed for use in underground mining operations, tunneling.
• Adopts 6000mAh capacity li-ion batteries, the batteries are sealed in a high impact-resist and water-resistant ABS enclosure, maintenance for free.
• Adopts high power LED light source, with 1 main light for working and 4 auxiliary lights for emergency lighting. The main light max illumination reaches to 7000Lux, working time more than 17 hours.
• The headpiece and battery box are connected by a cable with length of 1.45 meters, the head piece with a stainless steel clip that can be attached to a safety helmet, the lamp net weight is around 630g.
Main specification
Item
| KL6Ex
|
Battery style
| Li-ion
|
Rated capacity
| 6Ah
|
Rated voltage
| 3.7V
|
Lighting time
| >16h
|
Main light source
| Working current
| 0.28 A
|
Max luminance
(1m apart from the lamp)
| When lighting begins
| >7000lx
|
After lighting for 11h
| >6000lx
|
Sub-light source rated power
| 0.2W
|
Life of cap lamp
| 2 years
|
Charging Voltage
| (6-8)V
|
Charging time
| ≤10h
|
Explosion protection
| Ex ia I Ma
|
Protection grade
| IP65
|
Dimensions
| Headpiece: Ø71x75 mm,
Battery pack: (120x130x105)mm
|
Weight
| 0.63kg
|
