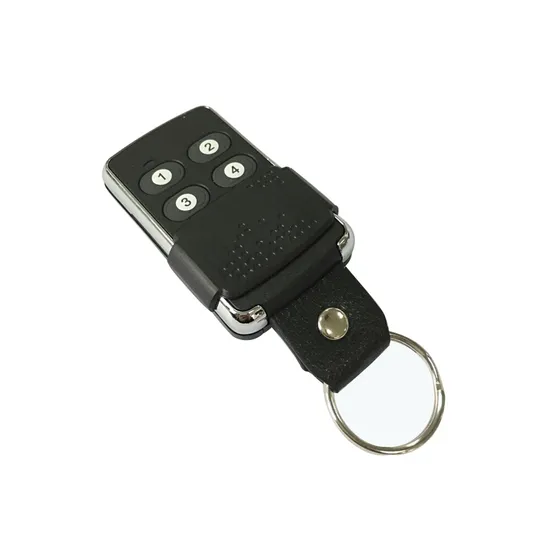

Hiland Transmitter T6520 with 433.92MHz Frequency & Rolling Code for Automatic Control System

Product Description

Specification
I. Technical Characteristics
1.1 Frequency: 433.92MHZ
1.2 Code:rolling code
1.3 Channel: 4
1.4 Battery: 3VDC CR2032
1.5 working distance : 50M(indoor)
II. Application Method
2.1 number 1,2,3,4 on the button means channel 1,2,3,4. The indicator light of the Chosen channel will turn on when you press the button
2.2 You could control the device with the transmitter by pressing 1,2,3,4
Example:
Use button 1 to control the device
Method:
1. Press button 1, the light of channel 1 turns on.
Self-learning function (For some receivers)
STEP1: Use the transmitter that already has been learned as old Transmitter, press button 1 and button 2 at the same time
STEP2: then press button 2 to let the receiver enters into the learning process.
STEP3: Press the same button on the new transmitter twice. The learning process done. In this way , new transmitter can be learned without pressing the learning button on the control board of receiver.
Certification
CE-T6XXX-LVD
CE-T6XXX-EMC Our ExhibitionCompany profilePackaging And LogisticsFAQ 1. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Transmitter,Tubular Motor Receiver,Sliding Gate Opener,Garage Door Opener,Photocell 3. Why should you buy from us not from other suppliers? Hiland is professional designer and qualified manufacturer of the automatic door control systems.We have 15 years experience We have sliding/garage/swing/rolling shutter opener and control systems,transmitters,receivers,photocell,flash lamp,keypad etc. Q4.How can i get a price of needed garage door opener? A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements. Q5.We want to be your agent of our area. How to apply for this? A: Please send your ideal and your profile to any e-mails of us .Let's talk more.

---
