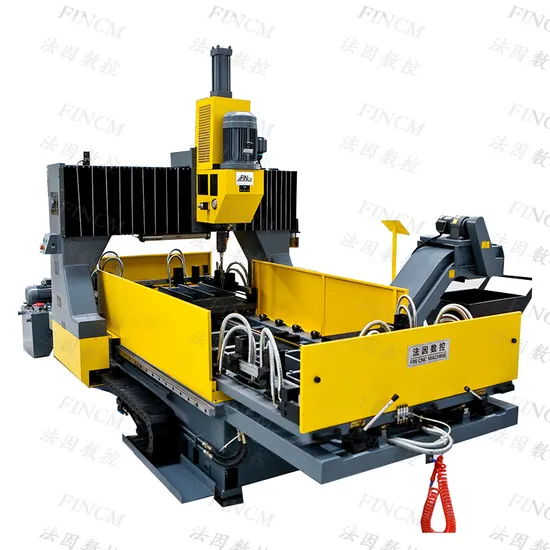

PD30B FINCM Gantry Movable Hydraulic CNC Vertical Steel Plate Drilling Machine

Product Description

PD30B FINCM Gantry Movable Vertical Steel Plates Carbide Alloy CNC Hydraulic Drilling Machine 3000mm*1600mm*80mm
Product Description
Product Parameters
Main Technical Specifications:

Item	Name	Value
Plate Size	Thickness	Maximum 80mm
	Width x Length	1600mm×3000mm (for One piece of plate)
		1500mm×1600mm ( for Two pieces of plate)
		800mm×1500mm (for Four pieces of plate)
Spindle	Quick change chuck	Morse taper No. 3#,No.4#
	Drilling bit Diameter	Φ12-Φ50mm
	Speed adjustment type	Frequency Inverter stepless speed change
	RPM	120-560r/min
	Travel Length	180mm
	Feeding	Hydraulic stepless speed adjustement
Material Clamping	Clamping thickness	Min. 15 ~ Max. 80mm
	Clamping cylinder No.	12 pieces
	Clamping force	7.5KN
	Clamping open way	Foot switch
Cooling	Method	Compulsory recycling
Hydraulic Power pack	Pressure	6MPa(60kgf/cm2)
	Oil tank	100L
Pneumatic system	Compressed air pressure	0.6MPa(6kgf/cm2)
Motor	Spindle Motor	5.5kW
	Hydraulic Pump Motor	2.2kW
	Scrap Removal Motor	0.4kW
	Cooling Pump Motor	0.25kW
	X Axis Servo Motor	1.5kW
	Y Axis Servo Motor	1.0kW
Machine Size	L×W×H	About 5560×4272×2855mm
Weight	Main machine	About 8000 Kg
	Scrap Removal Device	About 400 Kg
CNC Axis	X,Y(Point position control) Z(Spindle, Hydraulic feeding)
Travel	X Axis	3000mm
	Y Axis	1600mm
Maximum Positioning speed	8000mm/min

List of the Key Outsourced Components

No.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos/YUKEN	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Company Profile

Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
