Zigbee 3.0 Smart Life for Home Wireless Control Water and Gas Valve

Product Description

Product Description

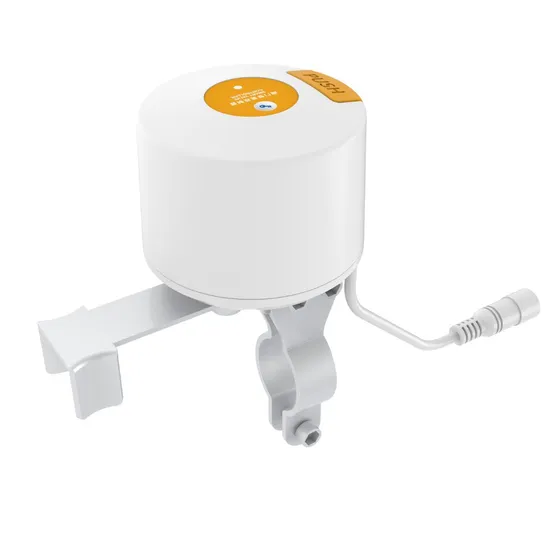

JD-GM20 SMART VALVE CONTROLLER
Specification: Working environment temperature: -10~55ºC,
Working Humidity: <95%
Valve pressure: 1. 6MPa
Valve closing time: 5-10s
Valve opening time: 5-10s
Application valve type: ball valve, butterfly handle valve

Packing list: Valve controller * 1
Instruction * 1
adapter
Bracket A( 1/2" 3/4" 1") * 1 set
Bracket B (1.2") * 1set
Screw * 3
Hex wrench * 1
Rubber(1/2")* 1
Hoop (1.2") * 1

voltage supply	DC12V 1A	manual mode	button
torque	3~6nm	valve type	ball valve & butterfly handle
pipe size	1/2" , 3/4" , 1"	IP class	IP40
response time	5~10s	net weight	290

Detailed Photos

---
