Ss Stainless Steel Breast Roll for Paper Machine

Product Description

Product Description

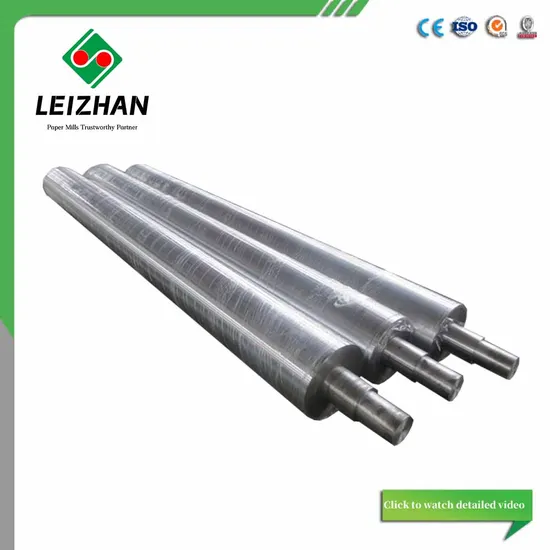

Paper Machine Felt/Wire Guide Roll
Guide rolls are wieldy and used in paper, textile, printing and dyeing, iron, and steel industries, from the driver guide, material selection, high-quality, seamless, roller surface coated rubber, composite, copper, or chrome.
Paper machine guide rollers are divided into two types: felt guide rollers and wire guide rollers.
The guide roll is a common component in paper making, and it plays the role of supporting the wire, wet felt, and dryer felt during operation. Our roll surface covered rubber, thickness is 10-12mm, and rubber is from Stowe Woodward or Chrome. We will do a dynamic balance to improve the stability of the roll.
Detailed Photos
Product Parameters
Feature:
1. Smooth low friction system;2. Direct acting positioning control provides fast and precise response;3. Minimal maintenance;4. Even load distribution;5. Easy parts replacement.

Name	Guide roll
Diameter	127-600mm
Face length	1000-6000mm
Rubber thickness	10-12mm
Shaft head	45#round steel
Bulk head	HT250
Dynamic balancing speed	250-1200m/min
Dynamic balancing quality	G2.5/G4
Material	Cast Iron, steel
Surface covering	Chrome, Rubber
