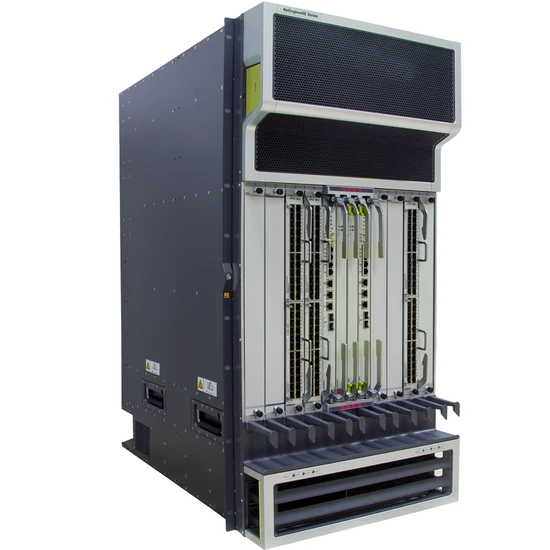

Enterprise Router Ne40e-X8a Integrated Chassis Components Network Router

Product Description

Product Description
Overview: NE40E-X8A Integrated Chassis Components

Part Number Model Description 02350AFW CR5B0BKP0871 NE40E-X8A Integrated Chassis DC Components(Including 2 Fan Tray) 02350AFX CR5B0BKP0872 NE40E-X8A Integrated Chassis AC Components(Including 2 Fan Tray) 02351CCF CR5B0BKP0873 NE40E-X8A Integrated Chassis HVDC Components(Including 2 Fan Tray) 02351TWW CR5B0BKP0874 NE40E-X8A Integrated Chassis DC Components(2T, Including 3 Fan Tray) 02351TWY CR5B0BKP0875 NE40E-X8A Integrated Chassis HVDC Components(2T, Including 3 Fan Tray) 02351TXA CR5B0BKP0876 NE40E-X8A Integrated Chassis AC Components(2T, Including 3 Fan Tray) 02352GEJ CR5B0BKP0878 NE40E-X8A Integrated Chassis DC Components 02352PQN CR5B0BKP0879 NE40E-X8A Integrated AC/HVDC Chassis Components

Technical Specifications

NE40E-X8A Integrated Chassis Components
Part Number	02350AFW	02350AFX	02351CCF	02351TWW	02351TWY	02351TXA	02352GEJ	02352PQN
Model	CR5B0BKP0871	CR5B0BKP0872	CR5B0BKP0873	CR5B0BKP0874	CR5B0BKP0875	CR5B0BKP0876	CR5B0BKP0878	CR5B0BKP0879
Description	NE40E-X8A Integrated Chassis DC Components(Including 2 Fan Tray)	NE40E-X8A Integrated Chassis AC Components(Including 2 Fan Tray)	NE40E-X8A Integrated Chassis HVDC Components(Including 2 Fan Tray)	NE40E-X8A Integrated Chassis DC Components(2T, Including 3 Fan Tray)	NE40E-X8A Integrated Chassis HVDC Components(2T, Including 3 Fan Tray)	NE40E-X8A Integrated Chassis AC Components(2T, Including 3 Fan Tray)	NE40E-X8A Integrated Chassis DC Components	NE40E-X8A Integrated AC/HVDC Chassis Components
Height x Wide x Depth	93cm (21 U) x 44.2 cm x 65cm (36.61 in. x 17.40 in. x 25.59 in.)
Weight without packaging (full configuration) [kg(lb)]	[400G bundle] 184.3 kg (406.31 lb)/186.1 kg (410.28 lb) [1T bundle] 206.5 kg (455.25 lb)/209 kg (460.77 lb) [2T bundle] 234.4 kg (516.76 lb)/242 kg (533.52 lb)
Weight without packaging [kg(lb)]	74.5 kg (164.24 lb) 78.9 kg (173.94 lb) 79.9 kg (176.15 lb) 84.3 kg (185.85 lb)
Typical power consumption (with configuration) [W]	4110 W (fully configured with LPUF-240s) 4770 W (fully configured with LPUF-480s) 6520 W (fully configured with LPUI-1Ts) 11100 W (fully configured with LPUI-2Ts)
Maximum power consumption (with configuration) [W]	6080 W (fully loaded with LPUF-240s) 7110 W (fully loaded with LPUF-480s) 9500 W (fully loaded with LPUI-1Ts) 14000 W (fully loaded with LPUI-2Ts)
Typical heat dissipation (with configuration) [BTU/hour]	13334.6 BTU/hour (fully configured with LPUF-240s) 15475.9 BTU/hour (fully configured with LPUF-480s) 21153.6 BTU/hour (fully configured with LPUI-1Ts) 36013.1 BTU/hour (fully configured with LPUI-2Ts)
Power supply mode	DC, AC, HVDC
Input voltage range [V]	DC: -40 V to -72 V AC:180 V to 264 V HVDC:192 to 288V,264 to 400V
Rated input voltage [V]	DC: -48 V/ -60 V AC: 200 V to 240 V HVDC: 240V/380V
Maximum input current [A]	DC: 63 A/single-module AC: 16 A/single-module HVDC: 14 A/single-module
Number of slots	12
Number of service board slots	8
Switching capacity [bps,bit/s]	25.16 Tbit/s (LPUI-1T) 51.2 Tbit/s (LPUI-2T)
Redundant Switch fabrics	3+1
Redundant fans	[400G bundle] 2 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) [1T bundle] 3 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F) [2T bundle] 3 assemblies in support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Redundant MPUs	1:1
Redundant power supply	[400G bundle] 3+1/3+3 [1T bundle] 5+1/ 4+1 [2T bundle] 7+1/ 5+1
Noise at normal temperature (acoustic power) [dB(A)]	NEBS-compliance (< 78 dBA @ 27°C (80.6°F))
Maximum number of power chassis inputs	DC: (8 channels/PEM)*2 PEM=(2 channels/PM)*4 PM*2 PEM=16 channels AC&HVDC:(4 channels/PEM)*2 PEM=(1 channel/PM)*4 PM*2 PEM=8 channels
Maximum input cable size	DC: 35 mm²/channel AC: Standard C19 cable HVDC: 2.5 mm²
Front-end circuit breaker/fuse	DC: 2 channels of 63 A/single-module AC: 16 A/single-module HVDC: 14 A/single-module
	[400G bundle] DC device: 4 PMs, with a total of 8 channels of 63 A [400G bundle] AC device: 6 PMs, with a total of 6 channels of 16 A [400G bundle] HVDC device: 6 PMs, with a total of 6 channels of 14 A [1T bundle] DC device: 6 PMs, with a total of 12 channels of 63 A [1T bundle] AC device: 8 PMs, with a total of 8 channels of 16 A [1T bundle] HVDC device: 8 PMs, with a total of 8 channels of 14 A [2T bundle] DC device: 8 PMs, with a total of 16 channels of 63 A [2T bundle] AC device: 8 PMs, with a total of 8 channels of 16 A [2T bundle] HVDC device: 8 PMs, with a total of 8 channels of 14 A
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158 °F)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 0.5°C/min (32.9°F/min), non-condensing
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage altitude [m(ft.)]	< 5000 m (16404.2 ft.)
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.)
MTBF [year]	22.32
MTTR [hour]	0.5
Availability	0.999997443
