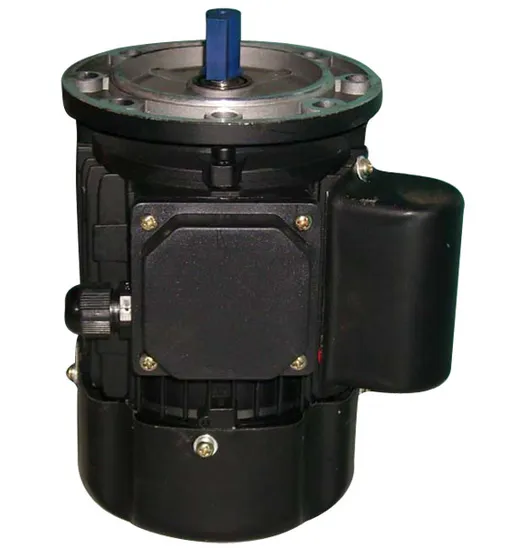

My Single Phase with Capacitor Start (MY5622) 220V 0.12kw 3000rpm

Product Description

Workshop
Product Description
Product Description
Introduction:
Single Phase Motor is a fully enclosed single- phase asynchronous motor with the latest design.With features like simple structure,reliable performance,easy maintenance and achievement of technical-economic targets,the products have been widely used in the air compressor,pump,refrigerator,washing machine,medical equipment,wood-working machinery,all kinds of agricultural machinery and so on.YC motor series have Protection Class of E or B,Cooling Method of IC411.
Motor Features:
1. Frame size: H56-132;
2. Power: 0.06-7.5KW;
3. Voltage: 110V 220V 230V 240V;
4. Rated Frequency: 50 Hz 60Hz ;
5. Poles: 2/4/6
6. Speed: 3000/1500/1000 r/min
7. Ambient Temperature: -15°C≤0≤40°C
10. Duty: continuous (S1);
11. Insulation Class: B , F;
12. Protection Class: IP44, IP54;
13. Frame material: Cast iron body , aluminum body
14. Cooling Method: IC411 Standards;
15. Altitude: No more than 1,000 meters above sea level;
16. Packing: 56-132 frame be packaged by carton&pallets
17. Certifications: CE, CCC, ISO9001: 2008

Company Profile
Company Introduction:

Zhejiang Yachan Electrical Machinery Co., Ltd. is a modern enterprise specializing in producing all kinds of small and medium motors. Its products mainly include Y, Y2 and IE2 series three-phase asynchronous motors, MS aluminum shell motors, YD series multi-speed motors, YCT series electromagnetic variable-speed motors, YVP variable-frequency and variable-speed motors, YEJ electromagnetic braking three-phase asynchronous motors, YC/YCL and YL single-phase series motors, JY single-phase asynchronous motors and MY/ML aluminum shell single-phase asynchronous motors. The company is located in Lianshu Industrial Zone, Wenling, next to National Highway 104, Huangyan Airport and Haimen Port, enjoying very convenient sea, land and air transportation. Since its inception, the company consistently adheres to the policy of "Develop Technology to Expand Market, Enhance Quality to Create Brand, Strictly Manage to Increase Benefit, and Based on Integrity to Be World-renowned", and insists on first-class quality to create first-class enterprise.


Factory Advantages

1 . 15 years history

2. Competitive Price

3. Guaranteed Quality

4. Fast delivery time, Normal models about 15-20days , another not normal models need about 30days

5. 100% testing after each process and final testing before packing ,all raw material is good quality .100% cooper wire, Cold-rolled silicon steel sheet,good quaility shafts ,bearings,stators ,fan,fan covers.and so on.

6. High efficiency

7. Low noise

8. Long life

9. Power saving

10. Slight vibration

11. It is newly designed in conformity with the relevant rules of IEC standards, Strictly and Perfect Management is guaranteed for Production ;

12. Professional Service

13. Warranty: 12 months from date of delivery

14. Main Market: South America, Middle East, Southest Asia, Europe,Africa and so on

15. We have Certification for CE, CCC, ISO9001,High quality and competitive price !

Product Parameters

Basic Data For Single Phase Motor
No.	Brand Name:	Yachan
1	Model Number:	(YC YL YY MY ML)
2	Type:	Induction Motor
3	Structure:	Asynchronous Motor
4	Place of Origin:	Wenling,Taizhou city, Zhejiang, China (mainland)
5	Insulation Class:	Class B F
6	Frequency:	50Hz 60Hz
7	Output Power:	0.06KW-7.5KW
8	Phase:	Single Phase
9	Pole:	2P, 4P, 6P
10	Wire:	100% copper
11	Protection Class:	IP44/IP54
12	Cooling Method:	IC411
13	Duty:	S1 (continuous)
14	Certification:	ISO, CE, CCC
15	Protect Feature:	Totally Enclosed
16	AC Voltage:	110V 220V 230V 240V
17	Ambient temperature:	-15°C≤0≤40°C
18	Altitude:	Not exceed 1000m
19	Mounting Type:	B3, B5, B35, B14,B34
20	Standard:	Confirm to IEC international standard
21	Installation:	we will send detailed instructions together with the Motors
22	Packaging Details:	Packed with export requirement protect the motors and convenient for transport.
23	Delivery Details:	25-30 Days

MY series aluminum ousing single-phase capacitor-run asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to the IEC standard. MY motors have good peroformance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration and at the same time of light weight and simple construction. The multiple of starting torque is 0.3-1.7.
These series motors are suitable for the occasion where there requirement of starting torque is low and long-term continuous working, such as home electric appliances, pumps, fans and recording meters, etc.
Operating Conditions
Ambient temperature: -15oC<q<40oC
Altitude: Not exceeding 1000meters
Rated voltage: 220V
Rated frequency: 50Hz/60Hz
Duty/Rating: Continuous(S1)
Insulation class: Class B/F
Protection class: IP54, IP55
Cooling method: IC0141 Packing
