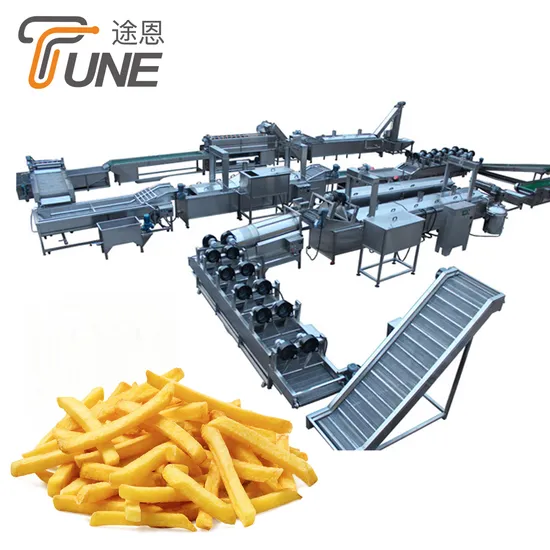

Fully Automatic Banana Slice Potato Chips French Fries Production Line

Product Description

Full Automatic Banana Slice /Potato Chips /Frozen French Fries Production Line
Frozen French Fries Production process:
Production line information:
100 kg Fresh potato used our production line can produce 60-70 kg Frozen fench fries.
The line can do 100kg ,200kg,300kg , 500kg 1000kg and 2000kg output one hour.

Equipment and components:

No.	Machine name	Application
1	Hoist	It is used to preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine.
2	Washing and peeling machine	This machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely
3	Inspecting table	This machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.
4	Potato cutter	This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important
5	Hoist	It is used to translate the finish cutter potatoes, then hoist potatoes into miscellaneous machine.
6	miscellaneous machine	This machine is used for impurity removal, to remove the fringes of the french fries, and then clean the equipment into the next step.
7	Rinsing line machine	This machine used to washing potato starch and protect potato from oxidation, keep its original color
8	Blanching line machine	This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the redusing sugar, also after blaching,it will get inner soft taste of french fries.
9	Air-dryer machine	Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.
10	Hoist	It is used to translate the finish Air-dryer potatoes, then hoist potatoes into Vibration dehydrator.
11	Vibration dehydrator	Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.
12	Continuous frying line machine	This machine is used to unified fry sticks in short time.
13	Vibrating oil off machine	This machine is used to de-oil with the vibrating
14	Dried degreasing machine	Use fan to blow off the water on stick surface, then deliver sticks into the freezer.
15	Hoist	It is used to between Dried degreasing machine and freezing machine
16	Quick freezing machine	It is used to quick freezing the french fries in short time, fries center temperature at -18 ºC, Can the maximum keep the original flavor and product quality
17	Automatic packaging machine	It is used to pack the french fries automatically.

Potato Chips Production process:


Production line information:
100 kg Fresh potato used our production line can produce 30-35kg Potato chips.
The line can do 50kg ,100kg ,200kg,300kg output one hour.
Equipment and components:

No.	Machine name	Application
1	Hoist	It is used to preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine.
2	Washing and peeling machine	This machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely
3	Inspecting table	This machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.
4	Potato chips cutter	This machine is used to cut potato into chips, potato chips quality depends on fries length and shape, so cutting machine is very important
5	Hoist	It is used to translate the finish cutter potatoes, then hoist potatoes into miscellaneous machine.
6	miscellaneous machine	This machine is used for impurity removal, to remove the fringes of the french fries, and then clean the equipment into the next step.
7	Rinsing line machine	This machine used to washing potato starch and protect potato from oxidation, keep its original color
8	Blanching line machine	This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the redusing sugar, also after blaching,it will get inner soft taste of french fries.
9	Air-dryer machine	Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.
10	Hoist	It is used to translate the finish Air-dryer potatoes, then hoist potatoes into Vibration dehydrator.
11	Vibration dehydrator	Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.
12	Continuous frying line machine	This machine is used to unified fry sticks in short time.
13	Vibrating oil off machine	This machine is used to de-oil with the vibrating
14	Dried degreasing machine	Use fan to blow off the water on stick surface, then deliver sticks into the freezer.
15	Hoist	It is used to between Dried degreasing machine and Roller seasoning mixer
16	Roller seasoning mixer	This machine is used to add seasoning to potato chips
17	Automatic packaging machine	It is used to pack the potato chips automatically.

Banana Slice Production process:

Banana Cutter chips - Frying - De oil- Air cooling- Seasoning-Weighting and Packing. Production line information:
100 kg Fresh bananas used our production line can produce 25 -30 kg banana slices.
The line can do 50kg, 100kg ,200kg,300kg output one hour.
Equipment and components

No.	Machine name	Application
1	Banana chips cutter	This machine is used to cut Banana into chips
2	Hoister	It is used to translate the finish Air-dryer Banana, then hoist potatoes into fryer
3	Continuous frying line machine	It is used to deep frying the Banana chips , then hoist Banana into Vibration de-oil machine. include Oil filter and Oil circulation tank.
4	Vibration de-oil machine	Used to De-oil the Banana chips on stick surface, then deliver sticks into the drying line.
5	Air cooling dehydrator	Use fan to blow cooling on stick surface, then deliver sticks into the seasoning mixer
6	Hoister	It is used to between air cooling machine and seasoning mixer
7	Roller seasoning mixer	This machine is used to add seasoning to Banana chips.
8	Automatic weighing and packing machine	It is used to pack the Banana chips automatically.

Customer Factory Installation
Packing and shipping

---
