Spine Orthopedic Implant Posterior Inter-Fixation System Titanium Medical Supply Spinal Pss 5.0&6.0 Pedicle Screw

Product Description

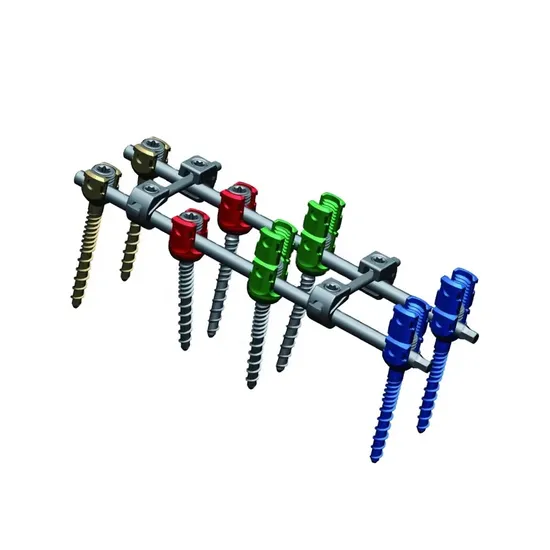

PSS 5.5 &6.0 Posterior Spinal Inter-Fixation System
Size Information

Length (mm)	25	30	35	40	45	50	55	60
Diamete(mm)	Φ4	Φ4	Φ4	Φ4
		Φ4.5	Φ4.5	Φ4.5	Φ4.5
		Φ5	Φ5	Φ5	Φ5	Φ5
		Φ5,5	Φ5,5	Φ5,5	Φ5,5
		Φ6	Φ6	Φ6	Φ6	Φ6
		Φ6,5	Φ6,5	Φ6,5	Φ6,5	Φ6,5
			Φ7	Φ7	Φ7

Product Introduction
Safe, easy and highly efficient Posterior Pedicle used for spinal internal fixation
Negative angle thread design
To reduce locking torque
Greater fixation strength
Excellent mechanical performance

Product Advantages
Low profile screw seat design
Minimal soft tissue irritation
Lager bone graft region
Double-thread design
Stronger fixation
Minimal screw dissection
Faster implantation

PSS-Miss 5.5 Minimally Invasive Spine System
Specification

Implants	Diameter (mm)	Length (mm)
Polyaxial Screw	Φ5.5-φ7.0 (0.5 increase)	30-55 (5 increase)
Single-axis Screw	Φ5.5-φ7.0 (0.5 increase)	30-55 (5 increase)
Rod (Straigh)	Φ5.5	30-120
Rod (Curved)	Φ5.5	30-120

Product Details
Integrated long tail nail design
More stable than extended casing
Convenient to plant sticks and tighten the top wire

Half-way double thread
Fixed stronger
Faster nail placement
Suitable for different bone types

Tail design
The tail can be broken off at the end the long tail
Prevent long tail deformation

Negative angle reverse thread
Reduce lateral stress
Increase vertical pressure and holding power

Thread start Blunt design
Can prevent wrong threading
Easy implantation process

Curved titanium rod
Pre-defined physiological curve
Reduce intraoperative bending

Single-axis Screw
Nail base can be rotated 360
Easy to penetrate the rod

Polyaxial Screw
Greater range of motion
Reduce nail head collision
More flexible structural installation

Product Name	Code	Specification	Note
PSS Φ6.0 Straight Rod	341360040	Φ6.0×40	Titanium
	341360045	Φ6.0×45	Titanium
	341360050	Φ6.0×50	Titanium
	341360055	Φ6.0×55	Titanium
	341360060	Φ6.0×60	Titanium
	341360065	Φ6.0×65	Titanium
	341360070	Φ6.0×70	Titanium
	341360075	Φ6.0×75	Titanium
	341360080	Φ6.0×80	Titanium
	341360085	Φ6.0×85	Titanium
	341360090	Φ6.0×90	Titanium
	341360095	Φ6.0×95	Titanium
	341360100	Φ6.0×100	Titanium
	341360110	Φ6.0×110	Titanium
	341360120	Φ6.0×120	Titanium
	341360130	Φ6.0×130	Titanium
	341360150	Φ6.0×150	Titanium
	341360160	Φ6.0×160	Titanium
	341360200	Φ6.0×200	Titanium
	341360250	Φ6.0×250	Titanium
	341360460	Φ6.0×460	Titanium
Product Name	Code	Specification	Note
PSS Φ6.0 Standard Pedicle Screw	345304030	φ4.0×30	Titanium
	345304530	φ4.5×30	Titanium
	345304535	φ4.5×35	Titanium
	345305030	φ5.0×30	Titanium
	345305035	φ5.0×35	Titanium
	345305040	φ5.0×40	Titanium
	345305530	φ5.5×30	Titanium
	345305535	φ5.5×35	Titanium
	345305540	φ5.5×40	Titanium
	345305545	φ5.5×45	Titanium
	345306030	φ6.0×30	Titanium
	345306035	φ6.0×35	Titanium
	345306040	φ6.0×40	Titanium
	345306045	φ6.0×45	Titanium
	345306050	φ6.0×50	Titanium
	345306530	φ6.5×30	Titanium
	345306535	φ6.5×35	Titanium
	345306540	φ6.5×40	Titanium
	345306545	φ6.5×45	Titanium
	345306550	φ6.5×50	Titanium
	345306555	φ6.5×55	Titanium
	345307030	φ7.0×30	Titanium
	345307035	φ7.0×35	Titanium
	345307040	φ7.0×40	Titanium
Product Name	Code	Specification	Note
PSS Φ6.0 Break-off Pedicle Screw	345314030	φ4.0×30	Titanium
	345314530	φ4.5×30	Titanium
	345314535	φ4.5×35	Titanium
	345315030	φ5.0×30	Titanium
	345315035	φ5.0×35	Titanium
	345315040	φ5.0×40	Titanium
	345315530	φ5.5×30	Titanium
	345315535	φ5.5×35	Titanium
	345315540	φ5.5×40	Titanium
	345315545	φ5.5×45	Titanium
	345316030	φ6.0×30	Titanium
	345316035	φ6.0×35	Titanium
	345316040	φ6.0×40	Titanium
	345316045	φ6.0×45	Titanium
	345316050	φ6.0×50	Titanium
	345316530	φ6.5×30	Titanium
	345316535	φ6.5×35	Titanium
	345316540	φ6.5×40	Titanium
	345316545	φ6.5×45	Titanium
	345316550	φ6.5×50	Titanium
	345316555	φ6.5×55	Titanium
	345317030	φ7.0×30	Titanium
	345317035	φ7.0×35	Titanium
	345317040	φ7.0×40	Titanium
Product Name	Code	Specification	Note
PSS Φ6.0 Multi-axial Pedicle Screw	345324030	φ4.0×30	Titanium
	345324530	φ4.5×30	Titanium
	345324535	φ4.5×35	Titanium
	345325030	φ5.0×30	Titanium
	345325035	φ5.0×35	Titanium
	345325040	φ5.0×40	Titanium
	345325530	φ5.5×30	Titanium
	345325535	φ5.5×35	Titanium
	345325540	φ5.5×40	Titanium
	345325545	φ5.5×45	Titanium
	345326030	φ6.0×30	Titanium
	345326035	φ6.0×35	Titanium
	345326040	φ6.0×40	Titanium
	345326045	φ6.0×45	Titanium
	345326050	φ6.0×50	Titanium
	345326530	φ6.5×30	Titanium
	345326535	φ6.5×35	Titanium
	345326540	φ6.5×40	Titanium
	345326545	φ6.5×45	Titanium
	345326550	φ6.5×50	Titanium
	345326555	φ6.5×55	Titanium
	345327030	φ7.0×30	Titanium
	345327035	φ7.0×35	Titanium
	345327040	φ7.0×40	Titanium
Product Name	Code	Specification	Note
PSS Φ6.0 Multi-axial Pedicle Screw	345334030	φ4.0×30	Titanium
	345334530	φ4.5×30	Titanium
	345334535	φ4.5×35	Titanium
	345335030	φ5.0×30	Titanium
	345335035	φ5.0×35	Titanium
	345335040	φ5.0×40	Titanium
	345335530	φ5.5×30	Titanium
	345335535	φ5.5×35	Titanium
	345335540	φ5.5×40	Titanium
	345335545	φ5.5×45	Titanium
	345336030	φ6.0×30	Titanium
	345336035	φ6.0×35	Titanium
	345336040	φ6.0×40	Titanium
	345336045	φ6.0×45	Titanium
	345336050	φ6.0×50	Titanium
	345336530	φ6.5×30	Titanium
	345336535	φ6.5×35	Titanium
	345336540	φ6.5×40	Titanium
	345336545	φ6.5×45	Titanium
	345336550	φ6.5×50	Titanium
	345336555	φ6.5×55	Titanium
	345337030	φ7.0×30	Titanium
	345337035	φ7.0×35	Titanium
	345337040	φ7.0×40	Titanium
Product Name	Code	Specification	Note
PSS Φ6.0 Hook Type Crosslink	341140015	60	for Φ5.5/6.0
	341140016	65	for Φ5.5/6.0
	341140017	70	for Φ5.5/6.0
	341140018	75	for Φ5.5/6.0
	341140019	80	for Φ5.5/6.0
	341140020	85	for Φ5.5/6.0
	341140021	90	for Φ5.5/6.0
Product Name	Code	Specification	Note
PSS Φ6.0 Press Type Crosslink	343140028	90	for Φ6.0
	343140027	85	for Φ6.0
	343140026	80	for Φ6.0
	343140025	75	for Φ6.0
	343140024	70	for Φ6.0
	343140023	65	for Φ6.0
	343140022	60	for Φ6.0
Product Name	Code	Specification	Note
PSS Φ6.0 Set Screw(Star)	345150002	Φ6.0	Set Screw(Star)
