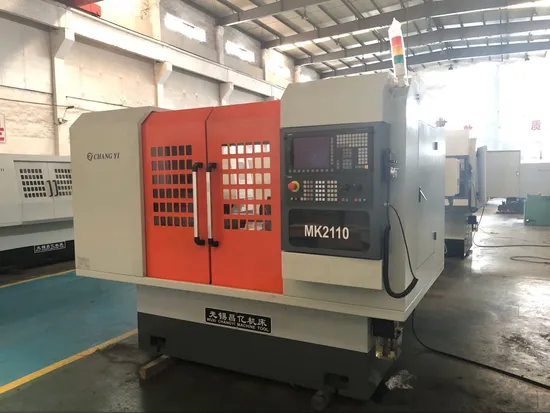

CNC Internal Grinding Machine Tool Equipped with Robot Arm Mk2110

Product Description

* Main characteristics of this machine tool MK2110
1. This machine tool is mainly used for grinding internal hole,internal end face, external end face and stepped hole of work piece;
2. This machine tool body adopts casting iron with good rigidity and small deformation
3. Setting and adjustment of machine tool parameters adopt touch screen. Human-machine dialogue can be realized.
4. All the movable guide rails of machine tools adopt high-precision linear rolling guide rails which have good sliding performance (usually use Rexroth from Gemerny). Screws for feed and reciprocating motion adopt high-precision ball screws (usually use THK from Japan or other famous brand in the world).
5. The feed system and reciprocating system of machine tool adopt Siemens servo system for double-axis linkage control.
6. Grinding wheel spindle of machine tool adopts high-speed motorized spindle and is controlled by static frequency converter, so as to realize stepless adjustment.
7. The headstock adopts high-precision ball bearing. The rotating speed of work piece is contolled by AC frequency converter to realize stepless speed adjustment.
8. The machine tool can be equipped with fixtures such as three-jaw chuck,hydraulic chuck, diaphram chuck,pneumatic chuck,etc. for user to select.
9. The machine tool adopts fully-closed shell with beautiful and elegant appearance.

---
