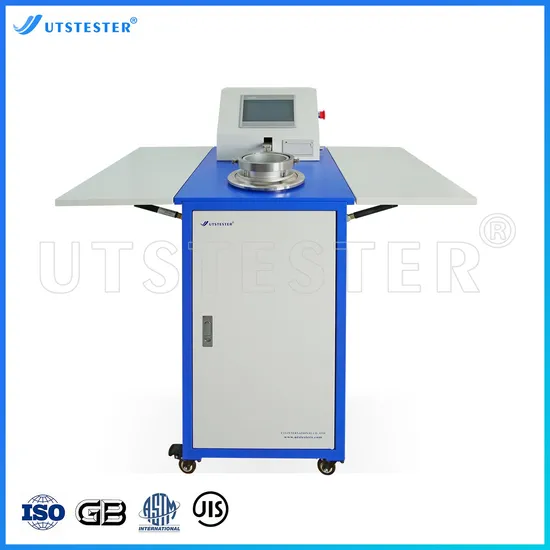

Textile Lab Equipment Air Permeability Measurement

Product Description

Product Description
To test the air permeability of various woven fabrics, including industries fabrics, non-woven and other breathable fabric.
Standard

GB/T5453 GB/T13764 ISO9237 ISO7231 ISO5636 ASTM D737 DIN 53887 JIS L1096 BS5636

Features Manual clamp sample and replace nozzle. Microprocessor processed, test results directly displayed. Built-in continuous test mode, test units can be switched based on demands. English touch screen menu operation, equipped with computer port.
Product Parameters

Model		M027A
Operation display		Touch screen
Pressure difference range		1-4000Pa
Permeability range		0.1~12000mm/s
Measuring error		≤±2%
Fabric thickness		≤12mm
Testing area		5cm2, 20cm2, 50cm2, 100cm2 Ф50mm (≈19.6cm2), Ф70mm(≈38.5cm2)
Nozzle parameter	No.	0	1	2	3	4	5	6	7	8	9	10
	Φ (mm)	0.8	1.2	2	3	4	6	8	10	12	16	20
Power supply		AC 220V 50/60HZ, 2KW
Dimensions		700 x 520 x 1100mm (L x W x H)
Weight		93kg
