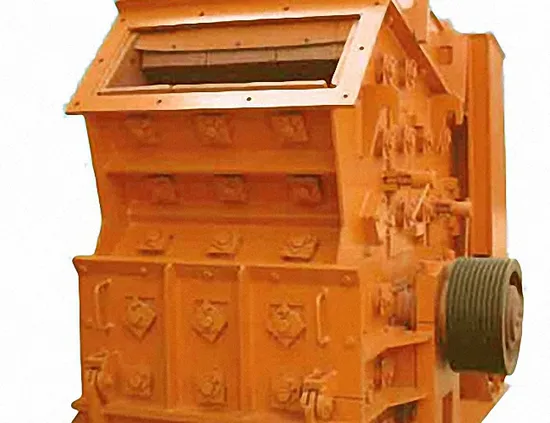

Impact Stone Crusher Machine Price, Impact Stone Crusher Price

Product Description

Impact Stone Crusher Machine Price, Impact Stone Crusher Price
feature
1, Certified : ISO9001,ISO14000,CE
2, Output better materials
3, 6 months warranty, delivery in 25 days
4, Hot sales in Asia, Africa
Impact crusher Application
Our impact crusher is a trusted and reliable brand for its high quality and good manufacturing. It specializes in producing impact crusher which is widely applied to crush high hardness, MID hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
Impact crusher series have many advantages, such as big reduction ratio, even granularity, simple structure, reliable working condition, convenient repair and economic operation, which are widely used for mine, smelting, building material, road, railway, irrigation works, chemical and materials with compression strength no more than 320 Mpa.
Application of Impact Crusher:
Metallurgy, construction material, mine, beneficiation and large block material crushing.
Applicable Materials:
Dealing with the material with the side length 500mm, not more than 320Mpa anti-pressure strength
Stone crusher machine price working principle:

stone crusher machine price working principle is applied to the operation of this impact crusher. When the crusher operating, the motor drives the rotor with hammers rotates in high speed, when the materials get into the crushing chambers, the rotating rotor impact the materials with hammers, then the crushed materials are thrown to the impact plates and then be rebounded from the impact liner to the crushing chamber where the blow bar would impact on the materials again, meanwhile the inertia can also carry the materials to impact each other, repeatedly, the materials from large to small all to be crushed at the impact chamber. The process wont stop till the material are crushed to the required size and then discharged from outlet of the highway crusher.
Specification of Impact Crushers

Types	Rotor Dia. × L mm	Raw material size mm	Production size mm	Capacity (t/h)	Motor power(KW)	Dimension L× W× H(mm)	Price FOB Chinese main port (USD)
PF-1210	1250× 1000	≤ 250	≤ 30	60-120	95-110	2580× 2080× 2750	60000
PF-1214	1250× 1400	≤	≤ 30	130-180	132-180	2690× 2360× 2820	68000
PF-1315	1325× 1500	≤	≤ 35	160-250	180-260	2890× 2680× 3090	76000

Impact Crusher Structure
An impact crusher with a rotor and one or more impact members interconnected to form an adjustable impact member system, a first impact member being mounted pivotally around a first horizontal axis by way of at least one drive means, on the second horizontal axis of which a further impact member, pivotal by way of at least one drive means, is provided, in which context the horizontal axis pivotally supporting the impact member is provided in the region of that end of the first impact member which is remote from the horizontal axis and the second impact member comprises one or more levers.
FAQ:
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
4.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
Welcome to visit our company and workshop, we sincerely look forward to cooperating with
you. We will provide you with the most suitable products with the reasonable price.

---
