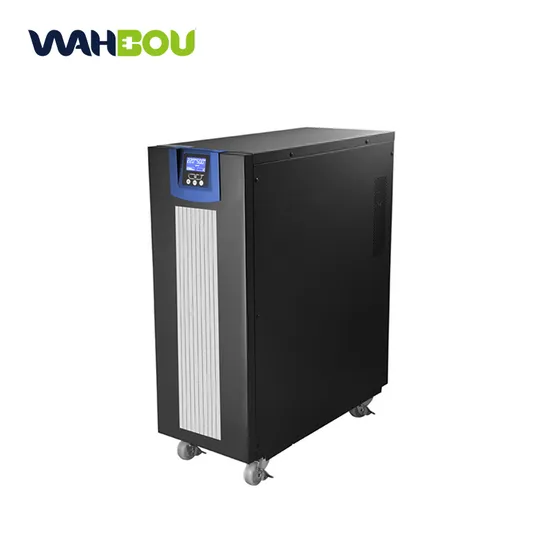

Industry Online UPS Low Frequency Electric Power UPS Td11 20kVA

US$85.00-1,515.00 1 Set (MOQ)

Basic Info.

Model NO.
TD11 20KVA
Protection
All of Overvoltage, Short Circuit, Overcurrent etc
Application
Industry
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Decentralized
Brand
Wahbou
Input Voltage Range
220V +- 25%
Working Frequency Range
40-70Hz(Settable)
Output Power Factor
0.8
Battery Rated Voltage
192VDC
Transport Package
Neutral Carton Box
Specification
655x370x900mm
Trademark
WAHBOU or OEM
Origin
Guangdong, China
HS Code
8504402000
Production Capacity
100000 Sets/Year

Packaging & Delivery

Package Size
66.00cm * 37.00cm * 90.00cm
Package Gross Weight
152.000kg

Product Description

Industry Online UPS Low Frequency Electric Power UPS TD02 Single Phase 20kVA/16000W
Our Advantages
Product Description
Product Parameters
Model TD11 3KVA TD11 6KVA TD11 10KVA TD11 15KVA TD11 20KVA
Rated Power 3kVA/2.4kW 6kVA/4.8kW 10kVA/8kW 15kVA/12kW 20kVA/16kW
Input Rated Voltage and Range 220Vac ±25%
Input Form 1P2W+G
Frequency Range 40Hz-70Hz (settable)
Output Rated Voltage 220Vac
Output Form 1P2W+G
Static Voltage Accuracy ±2%
Dynamic Voltage Transient ≤9%
Distortion of output voltage waveform ≤3%(liner),≤8%(non-liner)
Power Factor 0.8
Output Frequency 50Hz/60Hz
Output Overload 105%±5%≤ Load: Overload warning;
105%±5%<Load≤125%±5%: Convert to bypass output after 2 mins; 125%±5%<Load≤150%±5%: Convert to bypass output after 30s;
Load>150%±5%: Convert to bypass output after 500ms.
Battery Rated Voltage 192Vdc
Environment Operating Temperature 0ºC-40ºC
Operating Humidity 20%-95% (non-condensing)
Dimension (LxWxH) mm 533x260x501 560x260x717 655x370x900
Weight 40kg 65kg 79.5kg 122kg 152kg
Detailed Photos
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and you are welcome to visit us anytime!
