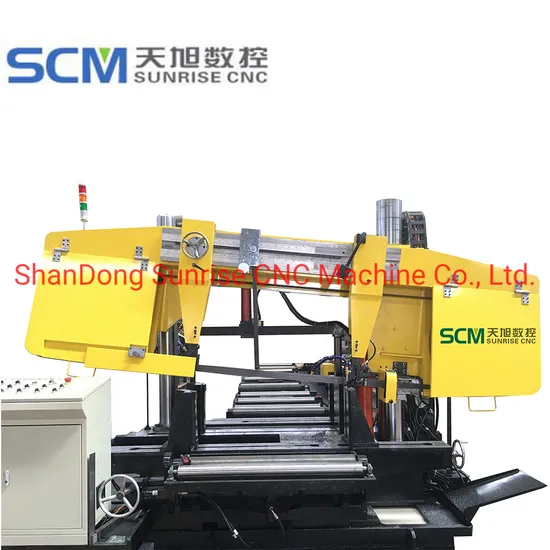

H Beam Sawing Machine Metal Cutting Band Sawing Machine Automatic Sawing Machine

Product Description

Product Description

Applicable Industry:
Used for the sawing of H-shape steel, box beams, channel steel, angle steel and round steel of steel structure, bridge, three dimensional garages and petrol platform industries.
Product Feature: Double column design equipped with strong lathe bed, with fine function of absorbing vibration during high speed sawing. Can rotate itself and no need to rotate for longer work piece when beveling for 0°~45°, can keep the continuity of production. Saw blade driving with greater motor power and good transmission. Used for the specialized processing of various section steel of steel structure industry. Saw blade hydraulic automatic tensioning device, keep saw blade stable during high speed rotation and can extend life of saw blade. Small aperture, high precision, and greatly reduce material consumption. Laser alignment function and advanced and retreated structure slightly adjusted with hand, convenient for cutting accurately. Automatic coolant compatible with blade could make blade lubricant and reduce the temperature of blade. PCL control, sawing linear velocity can be adjusted by transducer motor and sawing feeding speed also can be adjusted by hydraulic stepless adjustment. This greatly promotes production efficiency. Key machine, hydraulic pressure and electric components are chosen famous products domestic and abroad. Specification

sawing force (mm)		round steel	90°	Φ75 mm ~ Φ660 mm
			45°	Φ75 mm ~ Φ660 mm
		H beam / square steel	90°	200x75 mm~1250 x 600 mm
			45°	200 x 75 mm~850 x 600 mm
saw blade size (mm)		Thickness:1.6 Width:54 Length:8300
saw blade lineal speed (m/min)		20~80 (adjustable)
Motor power	saw blade	11kw
	hydraulic	2.2kw
	rotary table	0.04kw
	cooling system	0.12kw
bench height		800mm
feeding speed		stepless feeding
rotation angle		0°~ 45°
Overall dimension		Width: 4280mm
		Length: 2560mm
		Height: 2725mm
gross weight of machine		≈6800kg
Total power		18kW

Main components list:

NO.	Name	Model	manufacturer
Main electric components
1	PLC	Mitsubishi		Japan
2	Transducer			Germany SIMENS/ Rexroth
3	Touch screen	10 inch		Taiwan
4	Low voltage apparatus	All		Siemens
5	Travel switch			Schneiders
Main hydraulic components
1	Magnetic exchange valve		Italy ATOS
2	Electromagnetic relief valve		Italy ATOS
3	Unloading valve		Italy ATOS

Spare parts list:

NO.	Name	Model	Qty.	Remark
1	Saw Blade	NACHI	2)	Including the one installed in machine
2	Travel switch		1
3	Tools		1 set	America Walton
4	Spare paint		1 pail
5	Operation Manual		2 sets

Product Parameters

1. Saw blade hydraulic automatic tensioning device, keep saw blade stable during high speed rotation and can extend life of saw blade.
The tension of the saw blade is controlled by hydraulic device to keep good stretching force while the blade is rotating fleetly.
2. Can rotate itself and no need to rotate for longer work piece when beveling for 0~45, can
keep the continuity of production.
Now we use the hydraulic system control the rotation, improve the stability of main machine.
3. The linear speed of the blade is frequency control and vertical feeding speed is stepless speed regulating.
4. Automatic cycle coolant system, can save the coolant.

5. Laser alignment system, when processing work-pieces, improve the sawing precision.
After Sales Service
Installation:
The seller shall send one engineer to the buyer's country for installation, commissioning and training. The buyer is responsible to provide all necessary equipments for handling and lifting the machine parts before seller's engineers go to the buyer's plant. In addition, the buyer should provide workers to support in installation activities, under supervision from the seller's engineers. Commission:The Supplier should give drawings and other details of material/preparation required for installation of machinery which the buyer has to prepare and keep ready before the machine arrives at the buyer's factory. Installation and commissioning can be finished within 5-10 days for above machine generally. Training:Training will include training on computer programming, machine operation and troubleshooting. The training time is at most 5 days for this machine.
The buyer should arrange no less than two people for accepting training. After training, the buyer should sign the "Receiving & Inspection Report" supplied by the seller to demonstrate the successful finish of commissioning and acceptance of the buyer.
Company Profile
Factory:
With the development of SUNRISE, now our company has occupied important position in this industry. Due to the orders and sales performance is continuously improving, in order to better development, to meet customer's demand, and to provide customers high-quality equipment with the shortest time, our company have bought the new site, the area about 50,000 square meters, this will make sufficient preparation for development of our company and every customer. Workshop:Quality make brand, honesty win market, harmony converge talents, and innovation promote development. Our ability to consistently provide innovative, high quality products that outlast and outperform the competition, is why we are the one of the most successful companies offering the most advanced and productive solutions in the CNC machine industry. Warehouse:Manufacturing customer oriented products has always been our supreme concern. We believe that quality is the soul of an enterprise forever. Therefore, we never compromised with the quality of our products. We adopt advanced, scientific modern management ideas and system to realize supervisory control among all aspects of produce, inspection, sale and service etc., which help control quality, increase work efficiency and guarantee products' stability, reliability and precision. Therefore, the enterprise can achieve rapid and sustainable development. Team:We are a team of experienced and dynamic professionals who are experts in handling precision work through scientific processes. The professional excellent talents unite a powerful and creative team of design, research and development, which build our solid technical strength and competitiveness. And our company is developing fast and supply specialized service to all customers.
Packaging & Shipping
Packing Details : Packing, this model need 1*20GP;
Delivery Details : 30-50 days after get the first payment.
1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Certifications
SUNRISE is focus on quality and company's image. We win market with good quality and service. The company has already passed International Quality Management System ISO9001:2008 certification for many years and also got the CE certificate, smoothly got the title of High and New Tech Enterprises. And has more than ten own intellectual property rights and patent technology. We have own import and export right. Our products exported to Russia, South Asia, South east Asia, Middle East, South America, Africa, Australia, Eastern Europe etc.
Customer photo
SUNRISE CNC MACHINE ALL OVER THE WORLD, HAVE EXPORTED MORE THAN 30 COUNTRIES.
Our products exported to Russia, Ukraine, Albania, Romania, Iran, Israel, Jordan, Turkey, Uzbekistan, Egypt, UAE, Saudi Arabia, Lebanon, Mexico, Argentina, Brazil, Morocco, South Africa, Kenya, India, Australia, Indonesia, Vietnam, Sri Lanka, Singapore, Malaysia, Thailand, Myanmar etc.
FAQ: Q: Are you trading company or manufacturer ?A: We are China top 1 professional manufactutrer, have in this field about 15 years.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 30-50 days if the goods are not in stock.
Q: What is your terms of payment ?A: Payment 30% T/T in advance ,70%balance before shippment.
100% L.C. at sight.
If you have another question, pls feel free to contact us as below:
More information, please contact:
QUALITY MAKE BRAND, HONESTY WIN MARKET !

---
