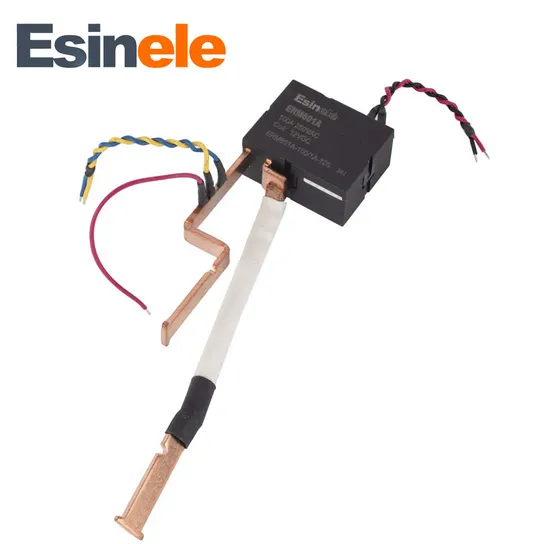

Customizable 12V 90A UC2/UC3 Miniature Spst Electromagnetic PCB Latching Relay for Smart City

Product Description

ERM601A
Characteristic:
4000VAC dielectric strength between coil and contacts
Switching capability up to 100A
Single coil/ Dual coils
Low power consumption
Outline size: 38×30×18.5mm
RoHS Compliance. ERM601A
Characteristic:
4000VAC dielectric strength between coil and contacts
Switching capability up to 100A
Single coil/ Dual coils
Low power consumption
Outline size: 38×30×18.5mm
RoHS Compliance.
Product Parameters

Contact Specification
Dimensions(mm)	38×30×18.5mm
Contact Form	1A/1B
Contact Material	Silver Alloy
Max Switching Current(Anti-load)	100A
Max Switching Voltage	28VDC/250V AC
Max Switching Power	2800W/25000V A
Wight	45g

Coil Specification
Rated Coil Voltage		9VDC	12VDC	24VDC	48VDC
Rated Coil Voltage	Single Coil (±10%Ω)	40.5	72	288	1152
	Double Coil (±10%Ω)	20.25	36	144	576
Power Consumption		Single Coil 2.0W;Double Coil 4.0W
Pick-up Voltage		≤75% Rated Coil Voltage
Drop-out Voltage		≤75% Rated Coil Voltage
Max. Applicable Voltage		≤120% Rated Coil Voltage
Pick-up Time(At Rated Voltage)		≤30ms
Drop-out Time(At Rated Voltage)		≤30ms
Bounce Time		≤2ms

Characteristics
Ambient Temp		-40~+70ºC
Ambient Humidity		≤75% Annually average
Anti-vibration		10~55Hz, 0.5mm (Double Amplitude)
Anti-shock		98m/s2 , 11ms
R.H.		45%~85%
Contact Resistance		≤2.0mΩ (1A/6VDC)
Insulation Resistance		1000MΩ (500VDC)
Dielectric Strength	Between Contacts	2000VAC 50/60Hz(1 Minute)
	Between Contact & Coil	4000VAC 50/60Hz(1 Minute)
Life	Electrical Life	≥1×104 OPS
	Mechanical Life	≥5×106 OPS

External Diagram

Wiring Diagram

Production Equipment
FAQ
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 200,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!

---
