Hanbs Vertical and Automatic CNC Lathe Machine

Product Description

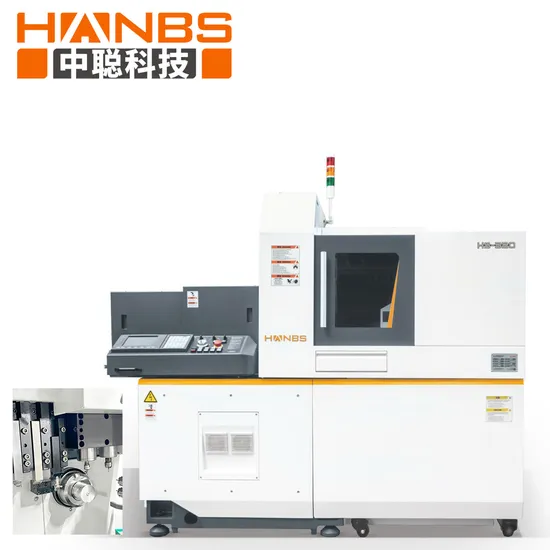

Hs-320 Vertical and Automatic CNC Lathe Machine
Product Description
Enhanced Precision and Accuracy:
With CNC machining, computer programs precisely control every movement of the machine, ensuring unparalleled accuracy and consistency.
Increased Efficiency and Productivity: CNC machines are capable of running continuously for extended periods without any breaks or interruptions. This allows manufacturers to achieve higher production rates and meet tight deadlines efficiently.

Versatility for Complex Designs:
One significant advantage of CNC machining is its ability to handle complex designs with ease, CNC machines can precisely execute complex designs by following instructions from CAD (Computer-Aided Design) programs.
Cost-effectiveness and Time-saving:
the precise and consistent nature of CNC machining eliminates the need for extensive quality control inspections, saving both time and money in the production process.
Product Photoes

Product Information

	Project
Processing references	Maximum machining diameter	Φ20mm
	Maximum machining length	190mm
	Maximum axial bore diameter	Φ10mm
	Maximum axial work wire size	M8
	Maximum spindle speed	10000rpm
	Radial maximum bore diameter	Φ7mm
	Radial maximum bore tapping size	M6
	Radial power head maximum rotation speed	ER11:10000/ER16:8000
	Rated speed of radial power head	ER11:8000/ER16:6000
	Maximum workpiece removal length	100mm
Tool dimension	Number of knives installed	6
	Tool (turning tool)	12X12
	sleeve	Φ25.0 X 4
Clip head guide sleeve	Spindle spring collet	TSUGAMI B0205CCR
	Power head collet	ER11,ER16
	Guide bushing	TSUGAMI BS-20#-B
Feeding speed	Z1/Y-axis feed velocity	30m/min
	X1	20m/min
Electric motor	Spindle drive power	2.5/3.7KW
	Power head drive power	1KW
	For cutting fluid	0.4KW
	Cooling of spindle	0.075KW
	Lubricating oil	0.01KW
Others	Spindle center height	1060mm
	Barometric flow	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	9.3KW
	Weight	2.6T
	Overall dimensions	2250X1200X1850mm

Processed Product Display
process material
Factory
Certifications
patents
loading and shipping
Q&A
1.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.

2. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days

3.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
4. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
5.Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
6. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
7. What kind of CNC system do you use?
A: Our CNC operating system is our self-developed servo spindle, our own brand, which has been very popular in the market because of its easy operation and comprehensive functions.
8.Are you a factory? How can I visit?
A: Yes. Our company is located in NO.,13 Wenti Road, Shuikou Village, Dalang Town, Dongguan City, Guangdong Province

---
