Basic Info.
Hose Coupling Type
Hose Coupling
Fire Hose Length
15/20/25/30m,Customized
Working Pressure
6 Bar, 8 Bar,10 Bar,13 Bar,16 Bar,18 Bar,20 Bar
Weaving Type
Twill Plain Weaving
Hose Coupling Structure
Plug-in
Color
White, Red, Yellow, Blue
Hose Coupling
Storz,GOST,John Morris,Machino,etc
Jacket Material
High Strength Polyester Staple,Polyester Filament
Jacket Numbers
Double Jacket
Standard
Manufactured to BS 6391: 2009
Transport Package
Bag/Carton Case
Production Capacity
1000000mtrs/Month
Product Description
Product Description

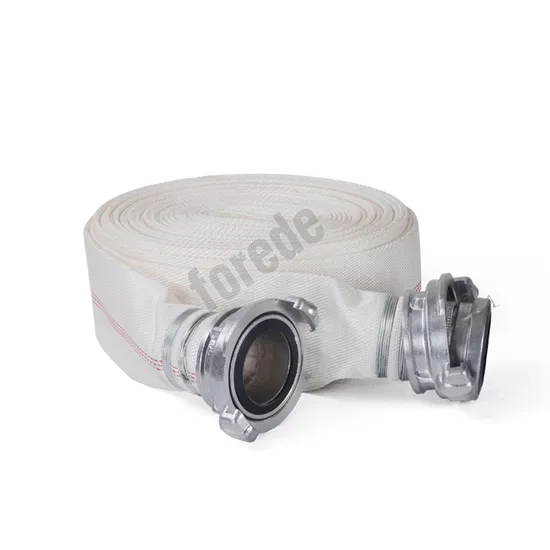

OVERVIEW Fire hose is a hose used to transport high-pressure water or foam and other flame-retardant liquids. The traditional fire hose is lined with rubber, and the outer surface is wrapped with flax braid. Advanced fire hoses are made of polymer materials such as polyurethane. There are metal joints at both ends of the fire hose. You can connect another hose to extend the distance or connect a nozzle to increase the liquid spray pressure.
INNER
The fire hose lining is PVC/Rubber/PU.
The lining has even thickness, smooth and flat surface, no wrinkle and other defects.
Colors to be select: white, blue, red, black and other colors customized.
Advantages: light weight, wearing resistance, corrosion resistance, small flow resistance, durability, and easy winding.
JACKET
Fire hose jacket weaving: double jacket, warp: high strength polyester staple, weft: low elongation polyester filament, plain or twill weaving. The Jacket weaving evenly, tidy surface and no jump double-warp, broken double-warp, weft jump and scratch.
Working pressure: 10 bar,13 bar,16 bar,25 bar,30 bar, 50 bar
Hose size:1 inch,1.5 inch,1.75 inch,2 inch,2.5 inch,3 inch,4 inch.
(working pressure and size can be customized)
Jacket color: white, red, yellow, blue, and other colors customized; the dyeing of strip can increase wearing resistance.
Jacket length: normal length is 15 m, 20 m, 25 m, 30 m, 40 m
Specification
| Specification |
| Lining Material | PVC |
| Jacket Material | High strength polyester staple,polyester filament |
| Jacket Numbers | Double Jacket |
| Jacket Color | white, red, yellow, blue, and other colors customized |
| Working Pressure | 10 bar,13 bar,16 bar,25 bar,30 bar, 50 bar |
| Hose size | 1 inch,1.5 inch,1.75 inch,2 inch,2.5 inch,3 inch,4 inch, |
| Hose Length | 15m, 20m, 25m, 30m, 40m |
| Hose Coupling | Storz,Gost,John Morris,Machino,etc |
| Use | Fire Fighting |
| Certificate & Approval | CCCF |
Package
Order Information
Dear Customer,
Before ordering, please contact with our sales team and discuss order information.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
>>
