Environmental Friendly PE Plastic Raw Material Polyethylene Cable Sheath Material Low Density Recycled LDPE

Product Description

Description

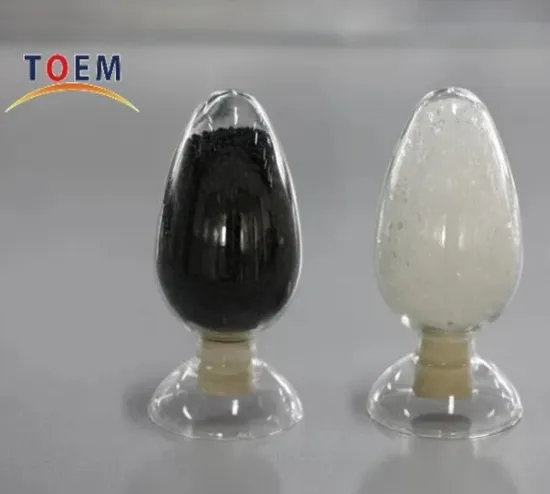

Environmental Friendly LDPE plastic raw material is polyolefin crosslinking semi-conductive shielding cable sheath material, using high-quality EVA resin, conductive carbon black as the main materials, adding cross-linking agent, antioxidant and other additives,mixed and granulated. The process is stable and the quality is reliable. The product is used for 10kV crosslinking polyethylene insulated cable conductor and insulation layer crosslinking semi-conductive shielding material.
Feature
1. Good flexibility and weather resistance;
2. Good processing performance and formability;
3. Environmental Friendly LDPE Plastic has good chemical stability;
4. LDPE plastic raw material has high flame retardant;
5. Excellent environmental protection;
6. High oil resistance; Application
Low Density Recycled Polyethylene LDPE is mainly used to make cable insulation sheaths;
It can also be used for film products, such as agricultural films and packaging films;
It can also be used for various injection molding products. Such as containers, bottle caps, etc. FAQ
1.What Kind of Company are We?
Shanghai Gengyun Industrial Co., Ltd., based on the development of technology forum OF telecom optical&electric cable equipment and materials(TOEM), is mainly engaged in investment, trade, and technical services in the field of telecom optical & electric cable.
We provide our customers with complete materials demand solutions, as well as overall solutions and customized services in factory design, equipment configuration, product development and raw material supply.
2.Is our product single?
We have quite a wide variety of products.
Our products contain raw materials for optical fiber & cable, telecommunication cable include PE, PVC, FRP, PBT, water blocking yarn, water blocking tape, optical fiber ink, optical fiber, steel plastic composite tape, aluminum plastic composite tape, aramid yarn, etc. and
equipment for cable manufacturing including high-speed fiber coloring and rewinding machine, fiber merging machine, fiber screening and rewinding machine, special fiber drawing machine, coating production line, high-speed cable forming production line. There are different models of products under each category, and customization is supported
3.Are samples available?
For most raw materials and optical cables, we can provide samples, but you need to bear the shipping costs; for cable manufacturing equipment, we can provide factory test reports of various indicators
4.Why Choose Our Company?
Our company was established in 2008 and has 16 years of experience in the communications industry. We can provide professional optoelectronic cable solutions and support product customization. Our products and raw materials are 100% in line with industry standards. We have warehouses all over the country, such as Shanghai, Jiangsu, Qingdao, Beijing and so on.
Package
In 25kg PP woven bag, or per your requirement.
20mt/20'FCL
Other Details
LDPE Injection Grade

Tests	Value	Unit
Melt Flow Rate (MFR)	15	g/10min
Density	0.922	g/cm3
Tensile Yield Strength	7	Mpa
Elongation at Break	75	%
Wien Softening Point	85	°C

LDPE Film Grade

Tests	Value	Unit
Melt Flow Rate (MFR)	2	g/10min
Density	0.9225	g/cm3
Tensile Strength	9	Mpa
Elongation at Break	500	%
Fish eye max(0.3-2mm)	30	n/1200cm2
Stripes	20	cm/20m3

T-PE004 Series PE/LDPE/LLDPE/MDPE/HDPE Raw Materials For Sheath Of Optical Fiber Cable
New Materials For Outer Sheath of High-Voltage Power&Rf&Outdoor Optical Cables, etc

Reference Standard GB/T15065-2009 Typical Physical And Mechanical Properties Are As Follows:

Item

Unit

Test Method

Typical

Density

g/cm3

GGB/T 1033.1

0.965

Melt Flow Rate

g/10min

GB/T 3682-2000

0.39

Tensile Strength

Mpa

GB/T1040.3-2006

26

Elongation At Break

%

GB/T1040.3-2006

830

Low Temperature Impact Embrittlement Temperature (-76 ºC)

*

GB/T 5470-2008

Pass

Volume Resistivity (20 ºC)

GB/T1410-2006

1.6×1014

Thermal Aging Performance 110ºC*240h

Rate Of Change Of Tensile Strength

%

GB/T 2951.12-2008

9.6

Rate Of Change Of Breaking Tensile

%

12.1

Environmental Stress Crack Resistance

Fo/h

GB/T2951.41-2008

Pass

Dielectric Strength

MV/m

GB/T1408.1-2006

26.8

200ºC OIT

min

GB/T2951.42-2008

53

Dielectric Constant

GB/T1409-2006

2.62

Dielectric Loss Factor

GB/T1409-2006

0.004

Carbon Black Content

GB/T2951.41-2008

2.66

Vicat Softening Point

ºC

GB/T1633-2000

112

*Appearance: Uniform color and no impurities. Evaluation: Qualified, meeting the requirements specified by ROHS. Note: The above typical values are random sampling data.

Packaging Storage And Transport The material must be supplied packaged in such a way as to be protected during transport, handling and storage. The packaging must be in plastic bags, "bigbag", or cardboard box. The packaging must have adequate strength and be free of impurities that may contaminate the product and be protected against moisture as well.
What We Have In The Field Of Telecom Optical & Electric Cable :
1>Mature and Efficient Supply Chain System And Rich Industrial Resources
2>Complete Materials Demand Solutions For Cable Manufacturing And Technical Services
3>Overall Solutions And Customized Services In Factory Design, Equipment Configuration, Product Development And Rawmaterial Supply
*Quotation Varies According To Customer's Requirements And Quantity Of Products

---
