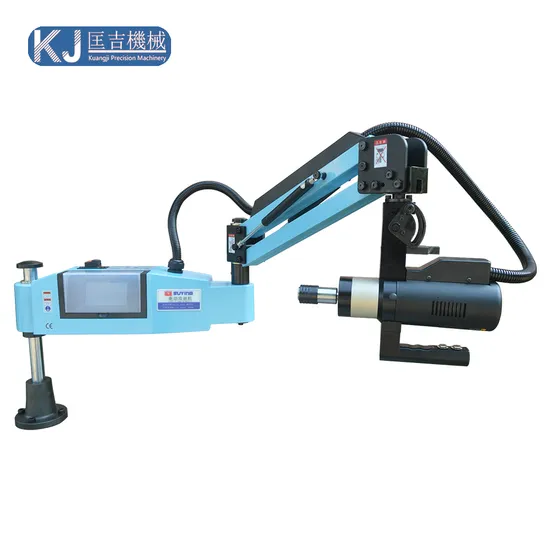

Upgraded M6-M24 Universal Touch Screen Drilling Threading Tapper Electric Flexible Arm Tapping Machine

Product Description

Machine Features The Electric servo cantilever drilling and taping machine is suitable for drilling and tapping various machines, moulds and auto parts.
The whole machine adopts the suspended manipulator mode, which realizes the integrated interchange of tapping, which is flexible and convenient.
The operation interface adopts Touch Screen operations to make tapping easier and more convenient, which can be operated by any general worker.
This machine adopts cantilever tapping, which is fast and convenient replacing the existing tapping products in the market.

Model	Voltage/Power	Speed range	Working radius	Number of chucks	Weight
Basic M3-M12 Universal	220V/600W	1-625rpm	1000mm	China Standard 6	about 30kg
Basic M3-M16 Universal	220V/600W	1-312rpm	1000mm	China Standard 8	about 30kg
Basic M3-M24 Universal	220V/1200W	1-200rpm	1200mm	China Standard 8	about 48kg
Upgraded M3-M16 Vertical Touch Screen	220V/600W	0-375rpm	1000mm	China Standard 8	about 30kg
Upgraded M3-M16 Universal Touch Screen	220V/600W	0-375rpm	1000mm	China Standard 8	about 30kg
Upgraded M6-M24 Vertical Touch Screen	220V/1200W	0-200rpm	1200mm	China Standard 8	about 48kg
Upgraded M6-M24 Universal Touch Screen	220V/1200W	0-200rpm	1200mm	China Standard 8	about 48kg
Upgraded M6-M36 Vertical Touch Screen	220V/1200W	0-125rpm	1250mm	China Standard 11	about 50kg
Upgraded M6-M36 Universal Touch Screen	220V/1200W	0-125rpm	1250mm	China Standard 11	about 50kg
Upgraded M12-M48 Universal Touch Screen	220V/1200W	0-50/250rpm	1250mm	China Standard 11	about 100kg

---
