Basic Info.
Lamp Body Material
Aluminum Alloy
Power
80W, 100W, 120W, 150W, 200W, 220W
Application
Square, Highway, Garden, Parking Lot, Street
Certification
CCC, CE, EMC, LVD, RoHS, SASO
Input Voltage
110V, 220V, 277V, 100V-240V
With Light Source
With Light Source
Optional Beam Angle
60*150°/70*150°/80*150°
Lens Type
Type II/Type III/Type IV/Type V
Working Temperature
-30~+60
Driver
Meanwell or Customized
Color of Houisng
Grey or Customized
Transport Package
Cartoon+Bubble Packing
Specification
660*290*190mm
Production Capacity
10000PCS/Month
Product Description
Product Parameters
| Model | Modular-TF01 | Modular-TF02 | Modular-TF03 | Modular-TF04 |
| Power | 60W-120W | 90W-180W | 120W-240W | 150W-300W |
| Input Voltage | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| LED Chip | CREE etc | CREE etc | CREE etc | CREE etc |
| LED Lume | 150LM-180LM/W | 150LM-180LM/W | 150LM-180LM/W | 150LM-180LM/W |
| C.T | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Color Rendering Index | CRI>70 | CRI>70 | CRI>70 | CRI>70 |
| Working Temperature | -35°-70° | -35°-70° | -35°-70° | -35°-70° |
| IP | 67 | 67 | 67 | 67 |
| IK | 08 | 08 | 08 | 08 |
| Operating Humidity | 10%-90% | 10%-90% | 10%-90% | 10%-90% |
| Anti-electric shock Rate | Class 2 | Class 2 | Class 2 | Class 2 |
| Material of Lens | Imported PC | Imported PC | Imported PC | Imported PC |
| Body Material | ADC12 | ADC12 | ADC12 | ADC12 |
| Installation dim | 60MM | 60MM | 60MM | 60MM |
| Size | 690*356*125MM | 770*356*125MM | 850*356*125MM | 930*356*125MM |
| Installation height | 6-8M | 8-10M | 8-10M | 10-12M |
| Lifespan | >80000hrs | >80000hrs | >80000hrs | >80000hrs |

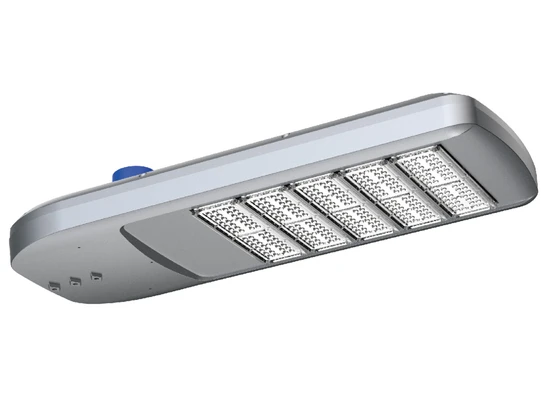

Product Advantages Modular LED Street Lights We are excited to share with you the advantages of our modular LED street lights!
Enhanced Flexibility: The modular design allows for easy customization and scalability, ensuring a perfect fit for any street lighting project.
Improved Efficiency: With advanced LED technology, these lights consume less energy while providing brighter illumination, resulting in significant cost savings and reduced environmental impact.
Simplified Maintenance: The modular structure enables quick and hassle-free replacement of individual components, minimizing downtime and maintenance costs.
Enhanced Durability: Built to withstand harsh weather conditions, these street lights offer long-lasting performance and reliability.
Smart Control Options: Integration with smart control systems allows for remote monitoring and efficient management, optimizing energy usage and enhancing overall functionality.
Experience the benefits of our modular LED street lights from Yangzhou Forever Lighting Co., Ltd. today!
