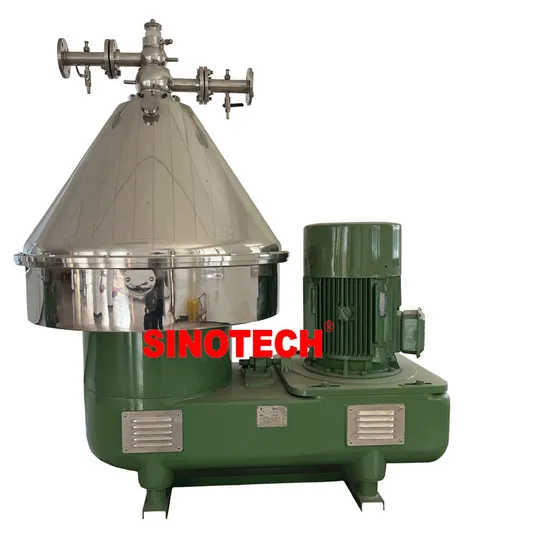

China Manufactured High Speed Centrifugal Separator for Marine Diesel Fuel Water Separator

Product Description

Product Description
Centrifuge Principle The disc centrifuge is a liquid-solid (or liquid-liquid solid) separation by utilizing the principle that the components of different densities (or emulsions) have different densities in the centrifugal force field. Disc separator is a kind of 2/3 phase sedimentation disc centrifuge, which is used to separate hard-to-separate materials
(Including mineral oil, gasoline, diesel, dairy products, vegetable oil, beverage, separation and purification of chemical products etc). Structure and principle:
The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged, controlled by the sliding bowl, out of the sediment outlet. Main Features:
It can realize liquid-solid separation. This machine has better separation. It can be operated manually or automatically or remotely with PLC control to timer the process of working and solid discharge to save lots of labour work. It is simple in structure and easy in maintenance.
Main Purposes: This machine is widely used for many industries, such as dairy, beverage, pharmacy, chemicals, petrol, metallurgy and biology, etc.
Structure and Principle:
The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Technical Parameters:

Model	DHC220	DHC270	DHC360	DHC470	DHC550
Capacity(L/H)	1000	2000	3000	7000	>10000
Motor(kw)	4	4	7.5	15	22
Weight (kg)	580	600	1000	1720	2500

FAQ
1. What data is required to confirm the model? (1) Materials to be separated (2) Treatment capacity per hour (3) Solid content percentage 2. What certificates do you have? We can provide CE, ISO 9001, etc 3. What is the warranty period of the equipment? Normally 1 year warranty 4. Can we visit your factory? Sure, we sincerely invite you to visit 5. Can we bring our own materials to your factory for experiments? Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site. 6. Can it be customized? Sure, our equipment can be customized according to the actual requirements of customers. 7. How long is the construction period? It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production. 8. Will you provide installation services? If you need, we can arrange professional technicians and engineers to install and debug on site.

---
