5 Axis CNC Milling Machine with Fanuc System for Heavy Toilet-Bowl Structures

Product Description

Product Description
Product Parameters

Item	Unit	U420
Travels
X-axis	mm	800
Y-axis	mm	500
Z-axis	mm	530
B rotation range of tilt axis	°	+30~-120
Rotation range of axis C	°	360
B/C axis positioning (VDI3441)	"	45/15
B/C axis repeatability (VDI3441)	"	8/6
Distance from spindle center to column guide surface	mm	205
Distance from spindle end to worktable	mm	80-610
Worktable
Worktable area	mm	Φ420
Reference aperture	mm	Φ25H7
T-slots width	mm	12H7
Maximum machining workpiece volume	mm	Φ420*(100+R210)L
Max. weight on table (45-90°/horizontal)	Kg	150/200
Spindle
Spindle speed	rpm
Taper of spindle nose		BT40/A63
ATC Auto Tool Magazine
Tool taper		BT40/A63
Magazine type		Mechanical cutter arm type
Tools Capacity	Pcs	24T
Maximum tool diameter (no adjacent tool)	mm	75/150
Maximum tool length	mm	300
Maximum tool weight	kg	7
VDI3441 (JISB6338)
Positioning	mm	P0.008(±0.003/300)
Repeatability	mm	Ps0.006(±0.002)
Basic parameters
Spindle motor	kw	7.5/11
X/Y/Z axis motor	kw	4.0/4.0/4.0
B/C axis motor	kw	3.0/1.6
X/Y/Z axis rapid speed	m/min	36/36/30
B/C axis rapid speed	rpm	16.7/22.2
Feed rate	mm/min	1-15000
Controller	FANUC	0i-MF
Power requersted	KVA	25
Air consumption	Kg/cm²	6
Machine weight	Kg	9000
Water tank capacity	L	250L
Dimension(L/W/h)	mm	3350*2900*2850

Standard proximity and function			Optional proximity and function
1.FANUC Oi-MF Plus control system		13.Transformer	1. Optical ruler
(5 Axis 4+1 with TCP)		14.Water gun	2. Tool length measurement tm26D
2.BT40-150 inclined spindle on 15000rpm		15.Air gun	3.Workpiece measurement OMP60
3.Oil coolant system		16.Rigid tapping	4.Ball gauge for calibration
4. Spindle blushing		17.Manual loosening device	5. Workbench center correction software
5.Cutting coolant system			6. HSK-A63 spindle 15000rpm/20000rpm
6.Tank and waterbox			7.40 pcs magazine
7.Automatic lubrication system			8.Blowing cooling
8. Telescopic cover of triaxial rail			9. Coolant temperature controller
9.Electric box air conditioner			10.Oil mist collector interface (diameter 200mm)
10.Handwheel			11. Air dryer
11.Work light			12. Bonded anchor bolt
12.Warm light			13. Metal filter housing of air dryer

OUT LOOK SIZE

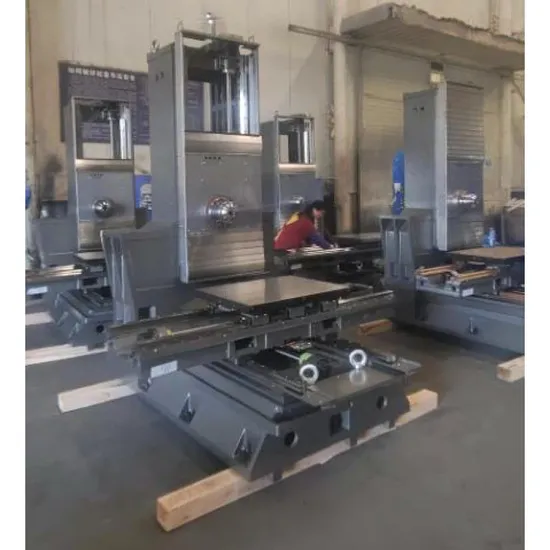

Detailed Photos
Company Profile
Packaging & Shipping
Certifications

FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
