Basic Info.
Alarm Valve Type
Dry Alarm Valve
Automatically Opened and Closed Repeatedly
Can′t Automatically Opened and Closed
Open Fire Sprinkler System Type
Deluge System
Closed Fire Sprinkler System
Wet Fire Sprinkler System
Dry Alarm Valve Type
Enclosed Type
Wet Alarm Valve Structure
Seat Type
Alarm Valve Diameter
80mm
Nozzle Flow Coefficient
80
Deluge Valve Type
Thermal Type
Production Capacity
50000
Packaging & Delivery
Package Size
24.00cm * 12.00cm * 12.00cm
Package Gross Weight
2.000kg
Product Description
Ningbo Star Win Actuators Manufacture Co.,Ltd has focused on top quality HVAC parts for over 30 years in China. We started as a transmission parts, stamping parts factory, but now have become one of the leading suppliers of the air damper actuators in the HVAC field in China.

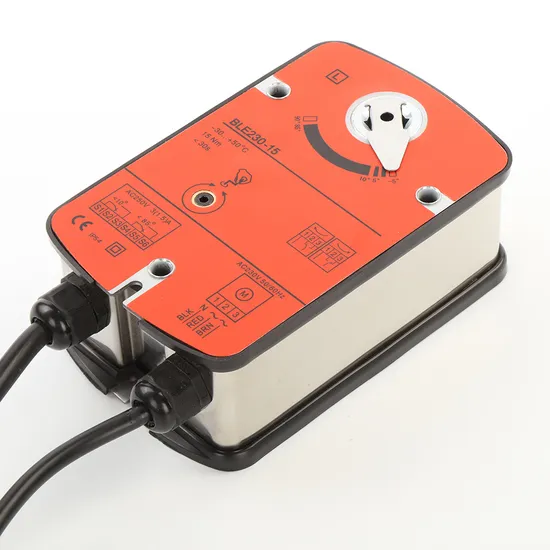

We now have the 5Nm spring return electric damper actuator(analogy BLF), the 15Nm reverse electric damper actuator( analogy BLE), the 6Nm, , 10Nm, 16Nm, 25Nm, 40NM on/off type electric damper actuator(analogy NM, LM, SM, GM), and 6Nm, 10Nm, 24V modulating electric damper actuator( analogy NM) and some other manual actuator.
For we are born of machinery parts factory, all the damper actuators parts are made by our own, the quality and delivery time can be controlled well, and keep our cost lower, to help you source the reasonable price actuator to win the market well.
| TS05 5Nm Spring Return On/Off type damper actuators | Power supply | AC/DC24V, AC230V |
| Allow error | 10% |
| Allow error | 15N.m |
| Run time(Motor drive) | 50...70S |
| Spring Return Time | 15...20S |
| Operating power | 6...8VA |
| Standstill power | 3VA |
| Output angle | 90°(95°Max) |
| Control signal TS... | 2point on/off control |
| Universal coupling | 7-12mm(squ) or Φ10-Φ16mm(cir) |
| Overload protection | Automatic |
| Protection class | IP54 |
| Ambient conditions | -10ºC ~+55ºC 0-99%Rh |
| Noise level(max) | Motor< 45dB(A) |
| Noise level(max) | Spring return< 62dB(A) |
| Weight | 1.8...2.2Kg |
>>
