Single Phase and Three Phase Power Capacitor with Power Factor Correction Capacitor

Product Description

Main Products

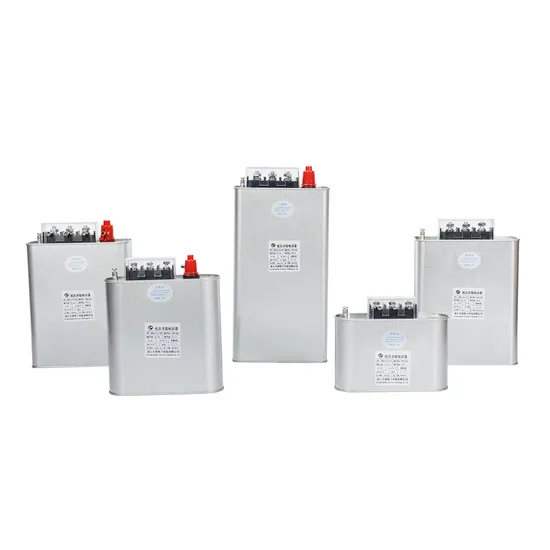

Product Description Dz-bkmj series self-healing low voltage shparallel capacitor is suitable for low voltage power system with frequency of 50/60Hz. It adopts advanced edge thickened Zinc-aluminum composite metallized polypropylene film and is wound and formed in constant temperature and humidity environment. When the dielectric material is perfused, inert nitrogen is injected under vacuum environment for double protection, which ensures excellent reliability and oxidation resistance of the capacitor element. It is mainly used to improve the power factor, reduce the reactive power loss and improve the quality of the low voltage network.
Product Parameters Execution standard:GB/T12747-2017 IEC60831-1996
The rated voltage:230VAC ~ 1000VAC
Rated frequency:50/60Hz
Maximum allowable voltage:1.1Un(8h/24h);1.15Un(30min/24h);1.3Un(1min/24h)
Maximum allowable current:1.3In(Long running);1.8In(Special customized)
insulation:T-C:≥MΩ/500V.DC
The environment temperature:-25ºC~+55ºC
Relative humidity:≤95%
Posters height:≤2000m
Product specifications

Product Model	Rated Current (A)	Rated Capacity (μF)	Overall Dimensions (MM)			Installation Size (MM)
			L	W	H
0.25-05-3YN	6.7	254.8	180	62	115	200*42
0.25-06-3YN	8	305.7	180	62	115	200*42
0.25-08-3YN	10.7	407.6	180	62	180	200*42
0.25-10-3YN	13.3	509.6	180	62	180	200*42
0.25-15-3YN	20.0	764.3	180	62	200	200*42
0.25-20-3YN	26.7	1019.1	180	70	220	208*50
0.25-25-3YN	33.3	1273.9	180	70	270	208*50
0.25-30-3YN	40.0	1528.7	180	70	320	208*50
0.25-40-3YN	53.3	2037.2	180	95	330	200*70.5
0.28-05-3YN	6.0	203.1	180	62	115	200*42
0.28-10-3YN	11.9	406.2	180	62	130	200*42
0.28-15-3YN	17.9	609.3	180	62	200	200*42
0.28-20-3YN	23.8	812.4	180	70	220	208*50
0.28-25-3YN	29.8	1015.5	180	70	270	208*50
0.28-30-3YN	35.7	1218.6	180	70	270	208*50
0.28-40-3YN	47.6	1624.9	180	95	280	200*70.5
0.30-05-3YN	5.6	176.9	180	62	115	200*42
0.30-10-3YN	11.1	353.9	180	62	180	200*42
0.30-15-3YN	16.7	530.8	180	70	220	208*50
0.30-20-3YN	22.2	707.7	180	70	220	208*50
0.30-25-3YN	27.8	884.6	180	70	220	208*50
0.30-30-3YN	33.3	1061.6	180	70	270	208*50
Note: The product series is updated in real-time. Please consult the sales personnel of Dazhao Electronics.
Product Model	Rated Current (A)	Rated Capacity (μF)	Overall Dimensions (MM)			Installation Size (MM)
			L	W	H
0.40-05-3	7.2	99.5	180	62	115	200*42
0.40-08-3	11.5	159.2	180	62	115	200*42
0.40-10-3	14.4	198.9	180	62	130	200*42
0.40-15-3	21.7	298.4	180	62	180	200*42
0.40-16-3	23.1	318.3	180	62	180	200*42
0.40-20-3	28.9	397.9	180	62	250	200*42
0.40-25-3	36.1	497.4	180	70	220	208*50
0.40-30-3	43.3	596.8	180	70	320	208*50
0.40-40-3	57.7	795.8	180	95	330	200*70.5
0.45-05-3	6.4	78.6	180	62	115	200*42
0.45-08-3	10.3	125.8	180	62	115	200*42
0.45-10-3	12.8	157.3	180	62	115	200*42
0.45-15-3	19.2	235.9	180	62	180	200*42
0.45-16-3	20.5	251.6	180	62	180	200*42
0.45-20-3	25.7	314.5	180	62	180	200*42
0.45-25-3	32.1	393.2	180	62	250	200*42
0.45-30-3	38.5	471.8	180	70	220	208*50
0.45-40-3	51.3	629.1	180	70	330	208*50
0.45-45-3	57.7	707.7	180	95	280	200*70.5
0.45-50-3	64.2	786.3	180	95	330	200*70.5
0.48-05-3	6.0	69.1	180	62	115	200*42
0.48-10-3	12.0	138.2	180	62	115	200*42
0.48-15-3	18.0	207.3	180	62	115	200*42
0.48-20-3	24.1	276.5	180	70	220	208*50
0.48-25-3	30.1	345.6	180	70	220	208*50
0.48-30-3	36.1	414.7	180	70	270	208*50
0.48-40-3	48.1	552.9	180	70	320	208*50
0.48-50-3	60.1	691.1	180	95	330	200*70.5
0.525-05-3	5.5	57.8	180	62	115	200*42
0.525-10-3	11.0	115.5	180	62	115	200*42
0.525-15-3	16.5	173.3	180	62	130	200*42
0.525-20-3	22.0	231.1	180	70	220	208*50
0.525-25-3	27.5	288.9	180	70	220	208*50
0.525-30-3	33.0	346.6	180	70	270	208*50
0.525-40-3	44.0	462.2	180	70	320	208*50
0.525-50-3	55.0	577.7	180	95	330	200*70.5
Note: The product series is updated in real-time. Please consult the sales personnel of Dazhao Electronics.

Company Profile Zhejiang Dazhao Electronic Technology Co., Ltd. Is A RESEARCH and development, manufacturing, sales, and service in one of the metalized film capacitor production technology enterprises.
The company was founded in 1996, located in Jiaxing CITY, the land of fish and rice, has nearly 30 years of history, the production base is set up in Yuyao City.
The company has more than 160 employees, and the technical management has more than 20 years of experience in capacitor research and development, design, manufacturing process, and production management.
The company has invested nearly 50 million yuan in a independent research and development environment of a constant temperature and humidity control system, the introduction of domestic and foreign advanced automatic film cutting equipment, high precision winding equipment, two-sided spray gold closed system for independent innovation, as well as the electric power capacitor pressure testing machine, electric power capacitor durability test-bed, capacitor aging test bench, ROHS spectrum analyzer and other equipment and production line.
The annual production capacity of the company can exceed 500,000 units, which is the leading level in the domestic low-voltage capacitor industry.
The company's whole series of products through the power capacitor durability life certification, is the first batch of certificate winners; In the same period, the whole series of products have passed the CQC, CCC, VDE, CE, CB, UL inspection certification, is the national specification and national standard implementation of the forerunner.

---
