High Speed 1.5-25mm Shock Absorber Spring Mattress Spring Compression CNC Spring Making Machine Spring Coiling Machine

Product Description

Spring Making Machine Technical Parameter:

Model	ROST-660	ROST-690	ROST-6160
Number of the CNC axis	6	6	6
Diameter of the steel wire(mm)	2.5-6mm	3-9mm	8-16mm
Max.outside diameter(mm)	65mm	120mm	250mm
Length of the feeding wire	No limitation	No limitation	No limitation
Speed of the wire feed	125m/min(max.)	70m/min(max.)	50m/min(max.)
Rotation	Left or Right	Left or Right	Left or Right
Forming way	Double points	Double points	Double points
Number of the wire feed wheel	3Pairs	4 Pairs	4 Pairs
Voltage	Three phase380±10%V.AC. 50HZ
Machine size(mm)	1900*1135*2100	2150*1800*2200	4000*2200*2700
Machine weight(kg)	3000	7500	16800

Company Information
"RONENFORM" BG(a member of RGL) is dedicated to manufacturing series of Wires/Springs Forming Machines, Tubes Bending Forming Machines, and various auxiliary equipment and spare parts. The company is headquartered in Beijing, and its manufacturing workshop is located in Baoding and Cangzhou. It provides high quality equipment for domestic and foreign pipe and auto parts customers, with rich experiences of serving the industrial field for more than 20 years, "RONENFORM" becomes a reliable professional wire/tube forming equipment supplier and life time partner. "RONENFORM" does not only provide machines, but also the know-how on specific products thanks to backup by a technician team consists of many top professors-being called "Craftsman", we are confident to guarantee all our customers that our manufacturing level /serving level ranks at the top all over China. We follow up the principle of "ZERO FAULT"on each steps of business with you. RONENFORM will always be here for you!
Spring Coiling Making Machine Description

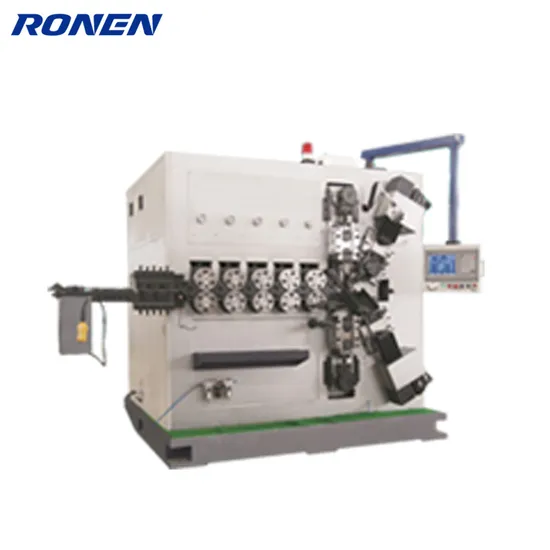

CNC 4-16mm Spring Coiling Machine Spring Making Machine with ISO/TUV/SGS/Ce
Functions and Features: Controlled with five axis: wire feed axis ,cam axis ,up-cut blade axis ,down-cut blade axis and space axis The five axis can work single-step or synchronously
3.Computer interface displayed in Chinese and English makes which the operation easily
4.Equipped with right or left-handed winding blade rest
5.The cutter can perform straight cut and twist cut

---
